2016 Jet JDP-17 Pedestal Drill

2016 JET JDP-17 Pedestal Drill – Floor Drill Press for Metal & Wood

Machine Type: Pedestal Drill

Year: 2016

Condition: Very Good

Precision Drilling Performance – Compact Power and Reliability

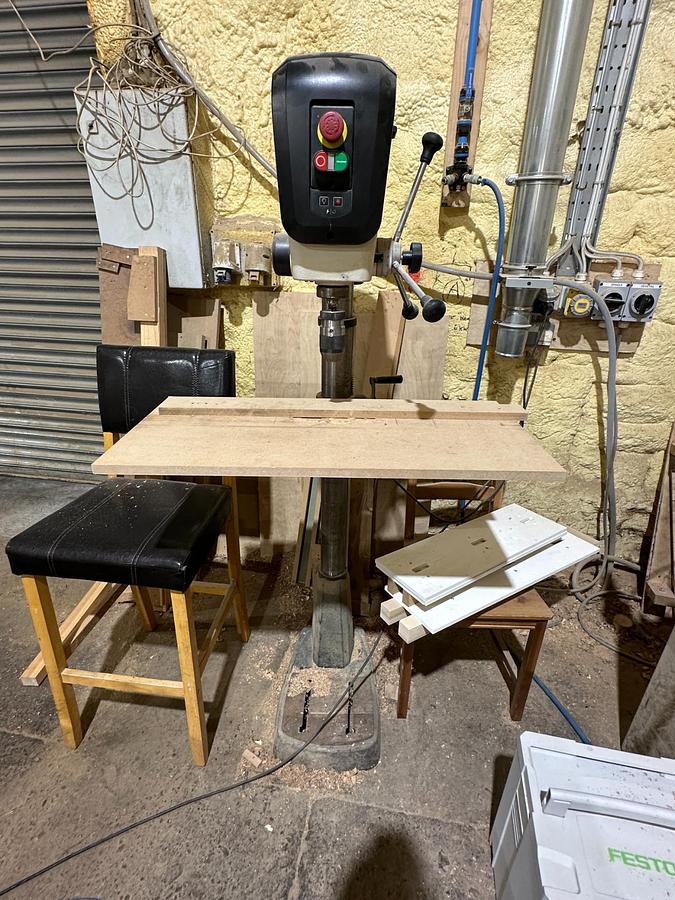

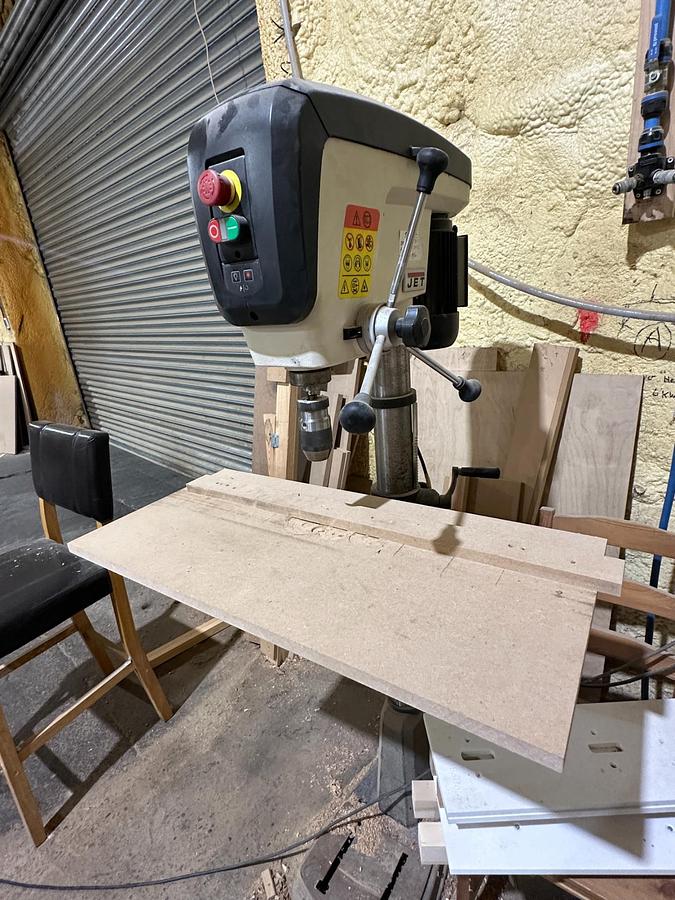

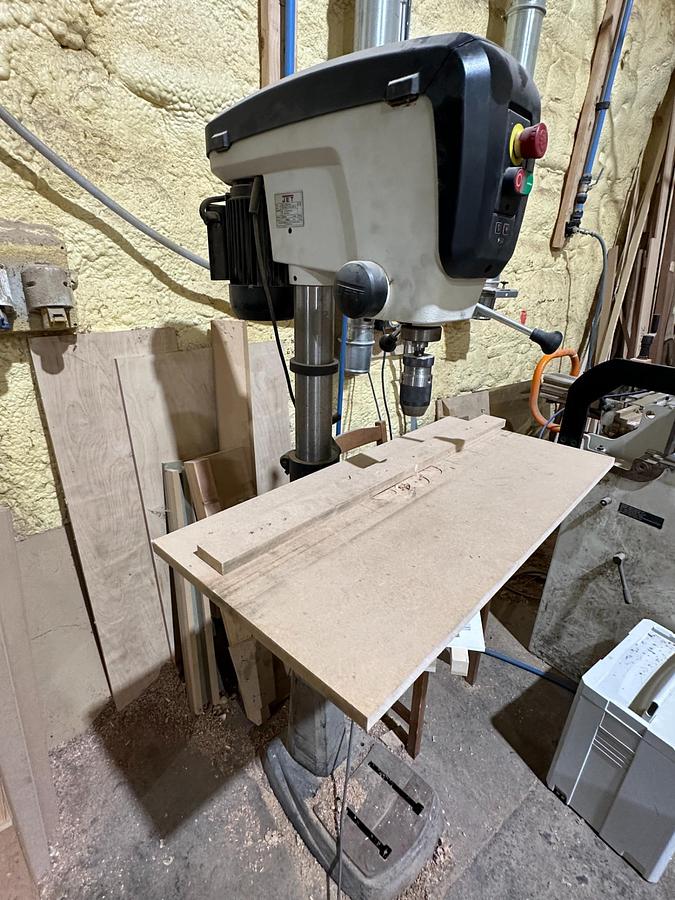

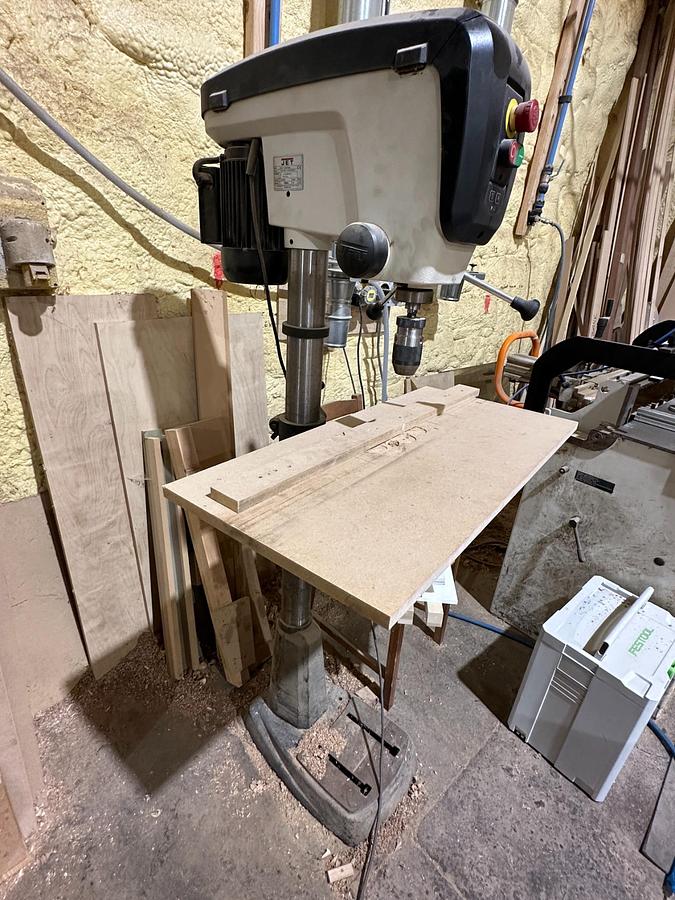

For sale: 2016 JET JDP-17 Pedestal Drill, in very good working condition.

This heavy-duty floor-standing drill press from JET Tools is built for professional and industrial use, combining smooth, powerful performance with precision depth control and a quiet, maintenance-free induction motor.

Perfect for workshops, metal fabricators, and woodworking professionals, the JDP-17 offers reliability and accuracy in a compact footprint.

⚙️ Technical Specifications – JET JDP-17

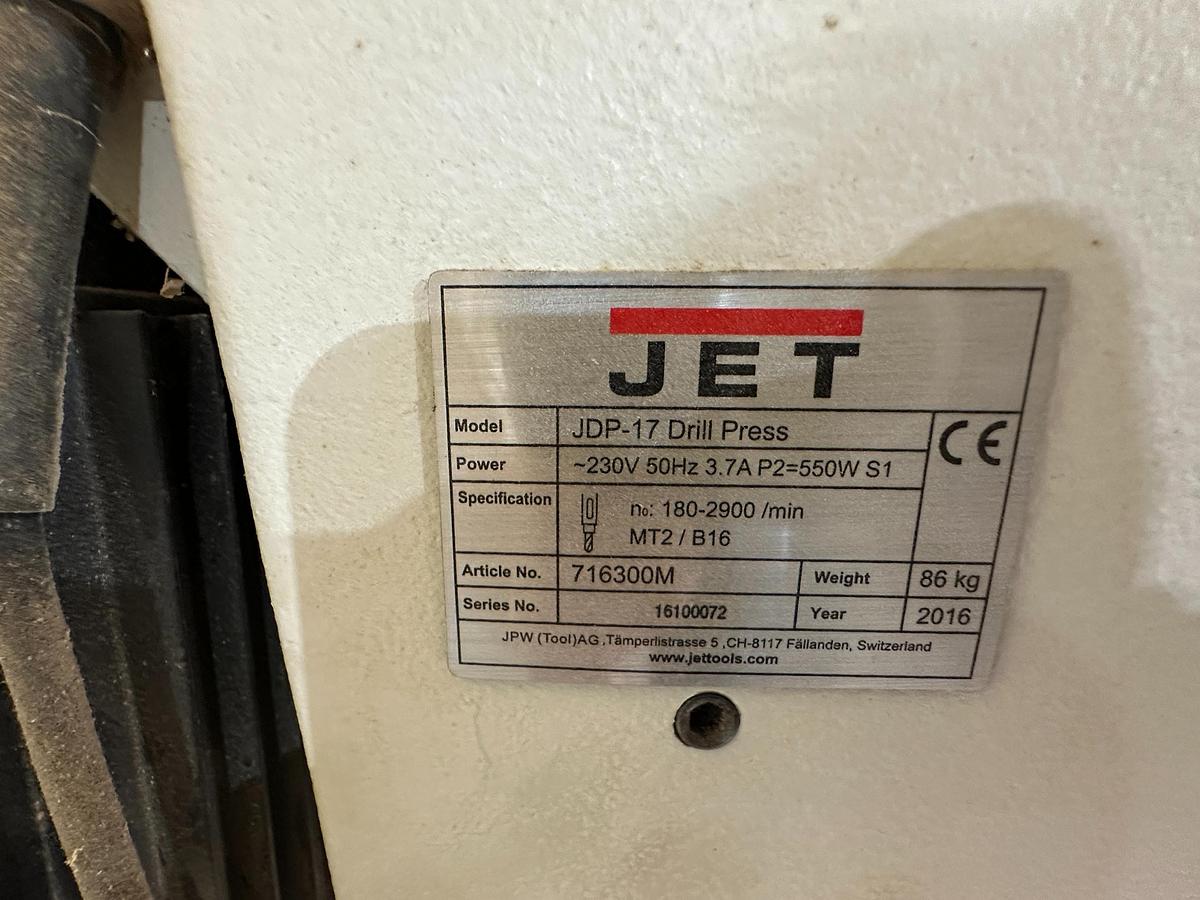

Model: JET JDP-17 (716300M)

Year: 2016

Type: Floor-standing / pedestal drill press

Drilling Capacity (steel): Ø 16 mm

Drilling Capacity (wood): Ø 51 mm

Spindle Taper: MT-2

Spindle Travel: 127 mm

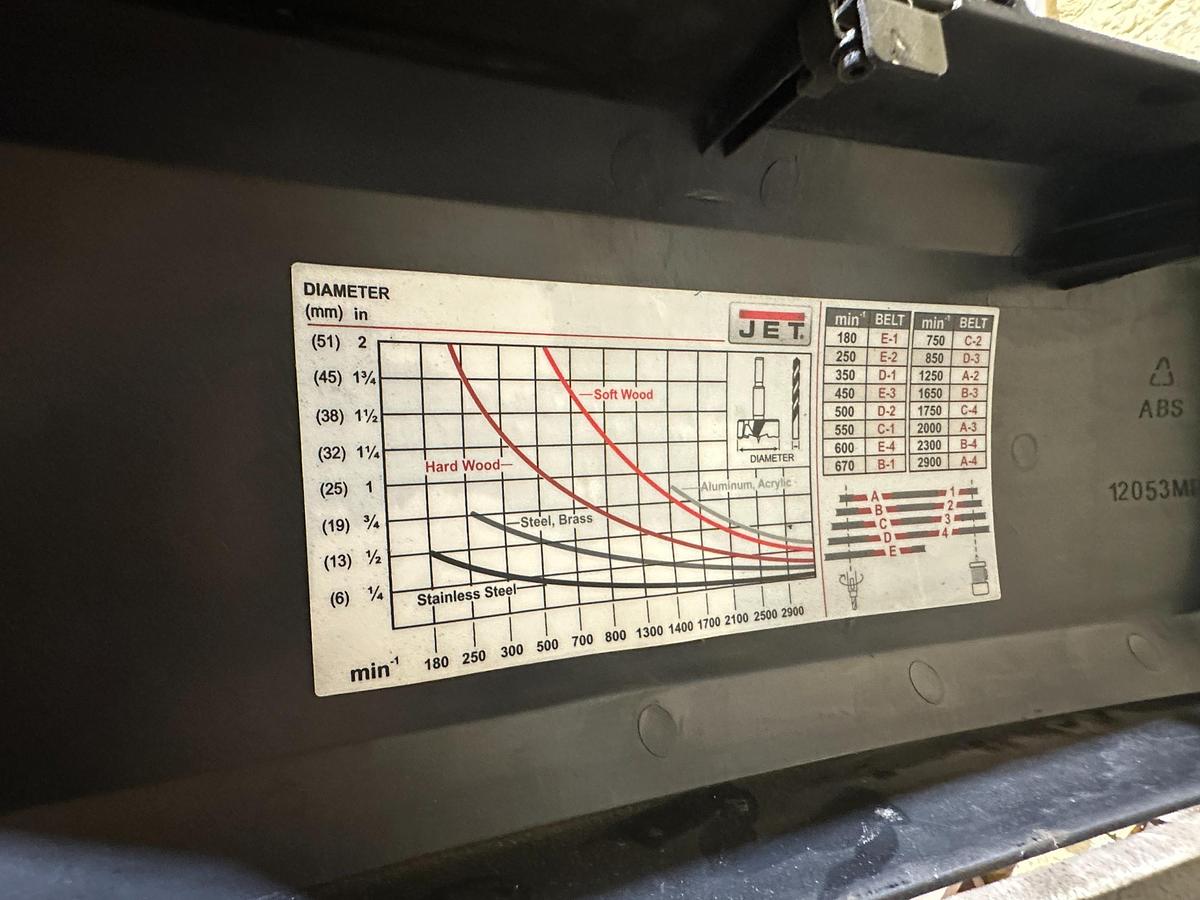

Spindle Speed Range: 180 – 2,900 rpm

Table Size: 352 × 483 mm (rotating & tilting table)

Table Tilt: ± 90° (left / right) and 360° rotation

Column Diameter: 80 mm

Throat Depth: 215 mm

Chuck Capacity: 1.5 – 16 mm (5/8″)

Motor Power: 1000W induction motor

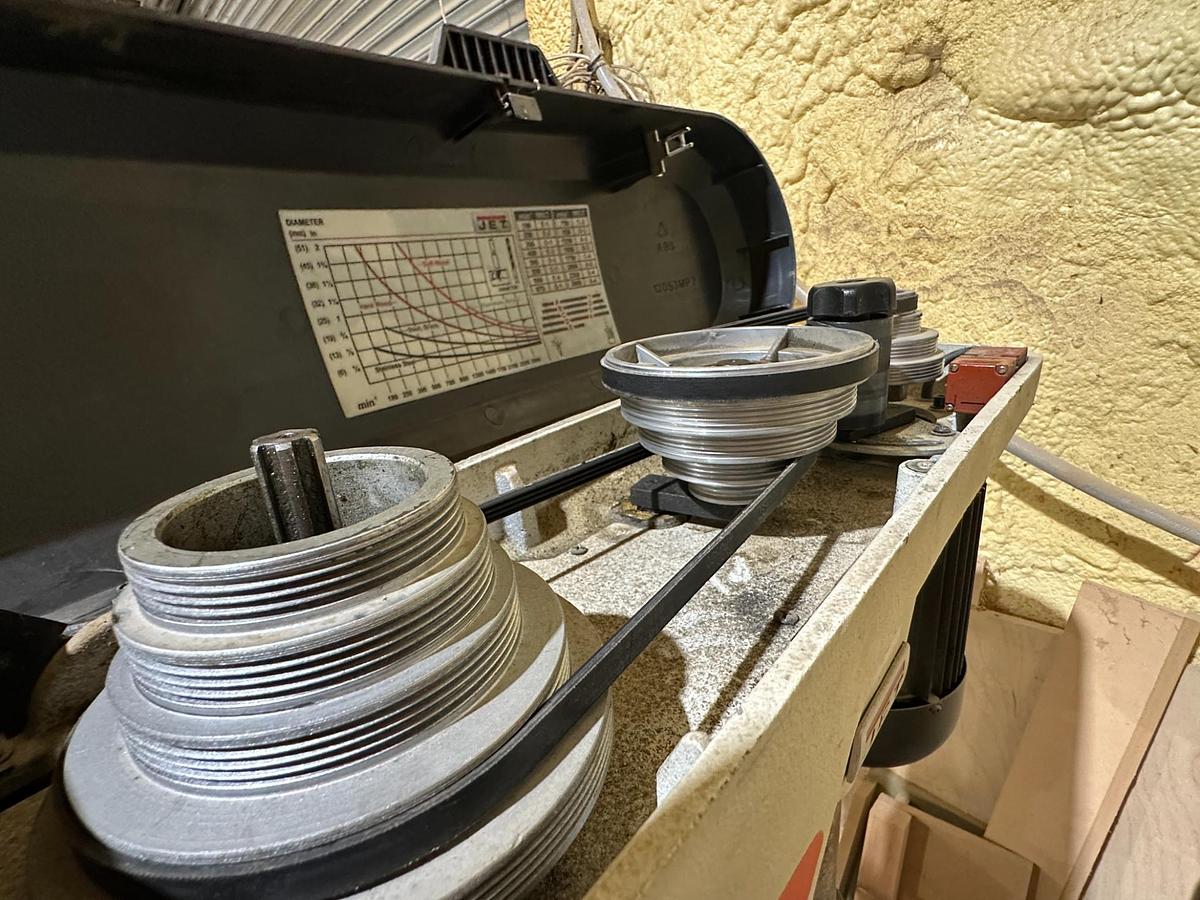

Speed Control: Quick-adjust belt tension lever

Work Light: Integrated LED lamp

Dimensions: 750 x 483 x 1680 mm

Weight: approx. 86 kg

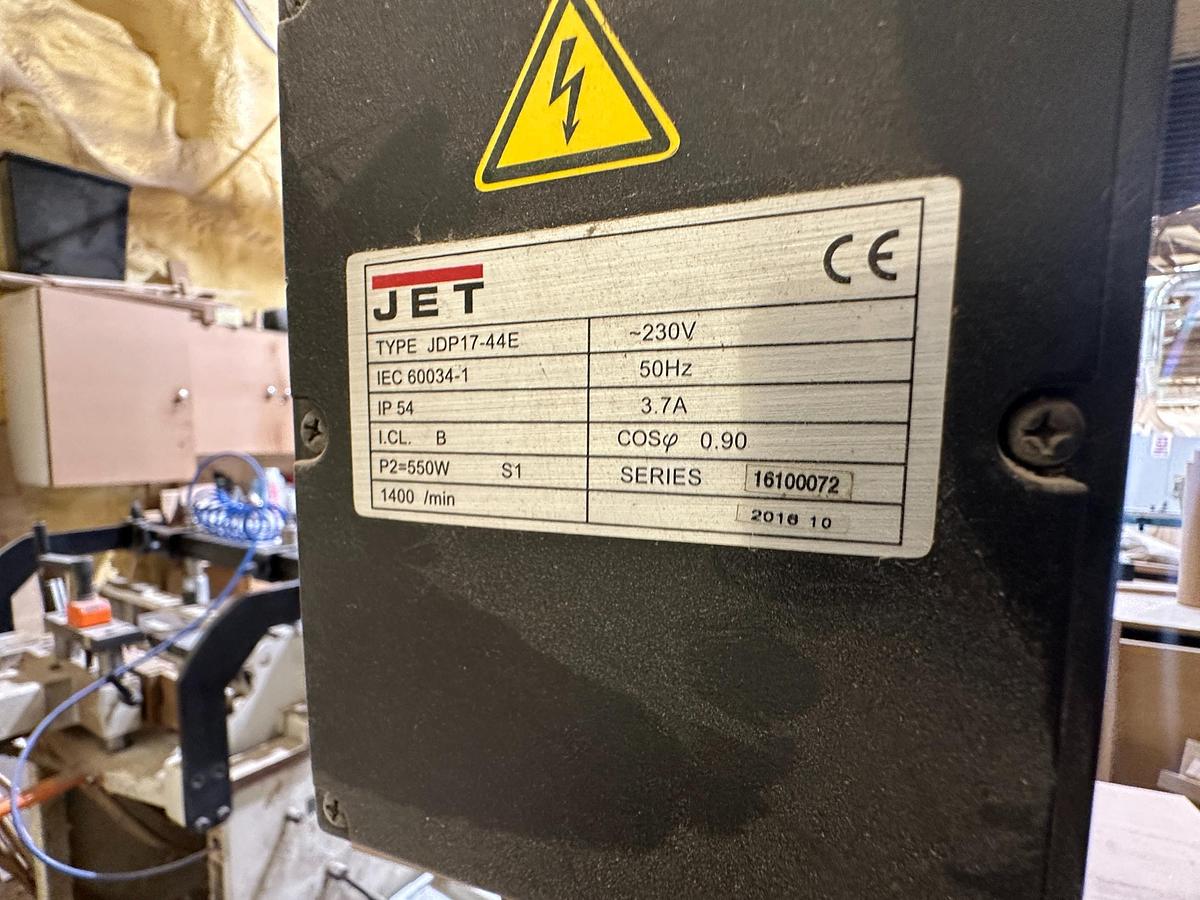

Electrical Connection: 230 V ~ 50 Hz (single phase)

Condition: Very good

🌟 Key Features and Benefits

• Powerful 1 HP Induction Motor – delivers consistent torque and quiet operation for metal or wood.
• Large Quill Travel (127 mm) – ideal for deep drilling and production work.
• Adjustable Work Table – tilts 90° left and right, rotates 360°, and includes quick-release height crank.
• LED Work Light and Laser Crosshair (on most models) – ensures accurate hole alignment.
• Precision Depth Stop – positive stop for repetitive drilling operations.
• Heavy-Duty Construction – cast-iron head, base, and table for rigidity and accuracy.
• Safety and Convenience – spindle guard and magnetic power switch for operator protection.

🧰 Applications

• Metal and wood fabrication
• Joinery and cabinet production
• Engineering workshops and maintenance departments
• DIY and prototype manufacturing

Why Choose This JET JDP-17 Pedestal Drill

• Reliable JET industrial-grade performance.
• Very good condition, tested and ready to use.
• Ideal for accurate drilling in wood, metal, and plastics.
• Quiet, powerful operation with long-life components.
• Available to be viewed by prior appointment.
