€40,480 + VAT

RHTC PPRM - 150 Production Press

5

Netherlands

orCall +353 838108745

Description

RHTC Presses PPRM - 150


Our 150 ton production press is suitable for stamping, die-cutting, deep-drawing and forming. This hydraulic press can be incorporated in automated production lines as well.

We produce this robust production press in Europe. Delivered according to the latest CE-standards: high quality guaranteed!

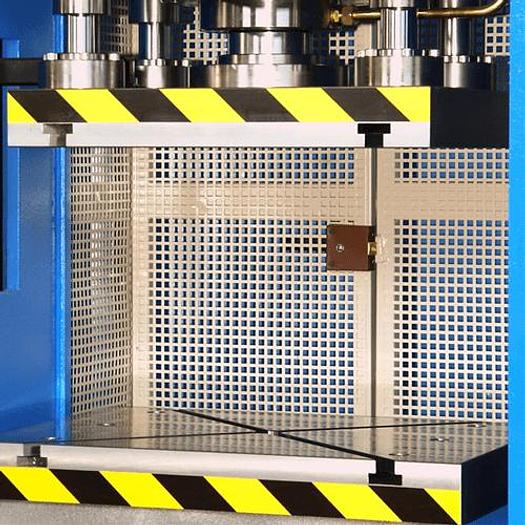

The production presses are equipped with a mechanized upper- and lower table with T-grooves. Four cylindrical, lateral guides are installed to ensure perfect alignment in the vertical movement of the upper table.

Adjustments to the position of the upper table (piston stroke) and changes in speed are controlled from a side control panel.

The control panel features a selector for manual, semi-automatic or automatic operation and a selector for the two different cylinder speeds (fast approach speed and slow working speed). It also contains a pressure switch and manometer. Operation of these PPRM-models is carried out by a foot pedal.

The production presses are equipped with level IV light guards situated at the front of the press, two fixed lateral protection panels and protection panels (which can be opened) with a magnetic detector disconnection switch situated at the rear.


Available in:

PPRM-80

PPRM-100

PPRM-150

PPRM-220

PPRM-300

PPRM-500


Technical specifications:

Pressure force [tn]: 150

Motor power [kW]: 7.5

Working speed [mm/sec]: 3.9

Approaching speed [mm/sec]: 20

Returning speed [mm/sec]: 30

Piston stroke [mm]: 250

Vertical light [mm]: 400

Frontal light [mm]: 850

Lower table size [mm]: 750 x 550

Upper table size [mm]: 650 x 500

Guides diameter [mm]: 50

Table- / working height [mm]: 950

Total length (lateral) [mm]: 1110

Total width (frontal) [mm]: 1750

Overall height [mm]: 2720

Weight [kg]: 3250


Features:

Rigid and robust machine frame

Upper- and lower table with T-grooves

Four cylindrical lateral guides for a perfect alignment of the upper table

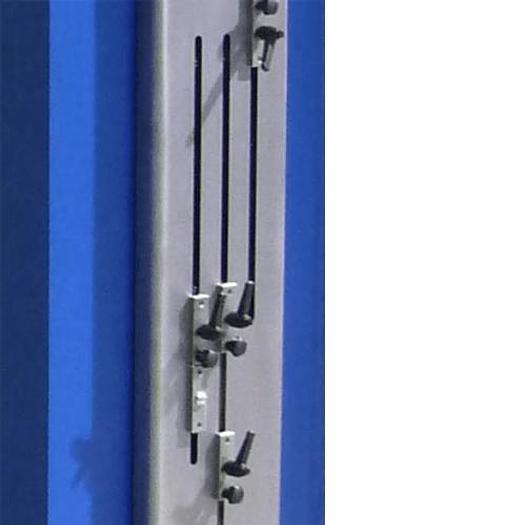

Adjustable piston stroke with end-stroke switches

Selector for manual / semi-automatic / automatic operation

Selector for working with 1 or 2 speeds

Pressure switch and manometer


Optional accessories:

PLC SIEMENS mod. SIMATIC S7 1200 with 7” touch screen mod. KTP-700

High speed approach by prefilling valves and lateral cylinders

Hydraulic cushion

Hydraulic ejector placed in the upper- or lower table or in both tables

Cooling equipment for the hydraulic group by an air-oil cooling system


Specifications

ManufacturerRHTC
ModelPPRM - 150 Production Press
ConditionNew
Latest CE-standardshigh quality guaranteed!
Pressure force [tn]150
Motor power [kW]7.5
Working speed [mm/sec]3.9
Approaching speed [mm/sec]20
Returning speed [mm/sec]30
Piston stroke [mm]250
Vertical light [mm]400
Frontal light [mm]850
Lower table size [mm]750 x 550
Upper table size [mm]650 x 500
Guides diameter [mm]50
Total length (lateral) [mm]1110
Total width (frontal) [mm]1750
Overall height [mm]2720
Weight [kg]3250
