€22,485 + VAT

RHTC PPCD-50 C-Frame Press

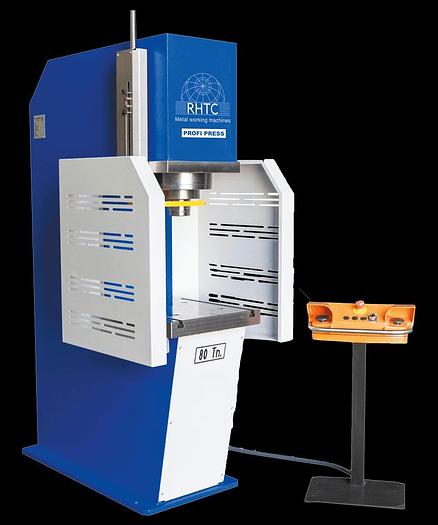

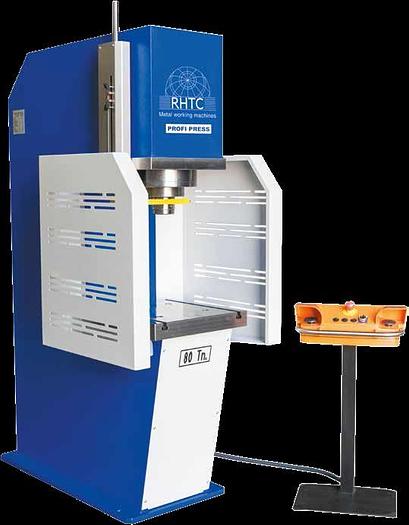

RHTC Profi Press Hydraulic C-Frame Press PPCD-50

Our 50 ton C-frame press is suitable for performing work involving deep-drawing, forming and stamping.

Equipped with a lower table with T-grooves, an adjustable piston stroke (with end-stroke switches), two speeds and a pressure switch. This 50 ton C-frame press has a manual and semi-automatic mode. Furthermore, you can operate the press by means of the two-hand push buttons.

These C-frame presses of RHTC consist of an electro welded structure made out of S355JR steel and are designed for stamping, die-cutting and forming / to incorporate in automated production lines. Made in Europe.

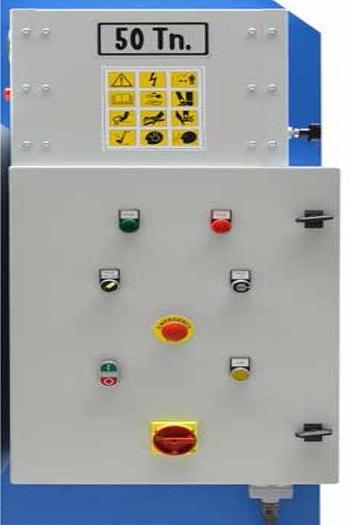

These C-frame press models are equipped with a mechanized lower table with T-grooves. The cylinder is mechanized at the end to adapt tools and moulds.The cylinder stroke is easy to adjust with the end-stroke switches on the side of the presses. Operation of these PPCD-models is carried out by a two-hand push button with level IV security module. The safety for these C-frame models is guaranteed by two fixed lateral protection screens and a front opening of 600 mm. The control panel features a selector for manual or semi-automatic operation and a selector for the two different cylinder speeds (fast approach speed and slow working speed). It also contains a pressure switch and manometer.

Available in:





Technical specifications:

Force [tn]: 50

Motor power [kw]: 4

Throat depth [mm]: 265

Working speed [mm/sec]: 6.3

Approaching speed [mm/sec]: 31

Return speed [mm/sec]: 42

Maximum pressure [bar]: 320

Piston stroke [mm]: 250

Lower table size [mm]: 450 x 450

Max. vertical light [mm]: 400

Working height [mm]: 850

Total length [mm]: 1170

Total width (frontal) [mm]: 740

Height [mm]: 2080

Weight [kg]: 1480


Equipped with a lower table with T-grooves

The cylinder is mechanized at the end to adapt tools and moulds

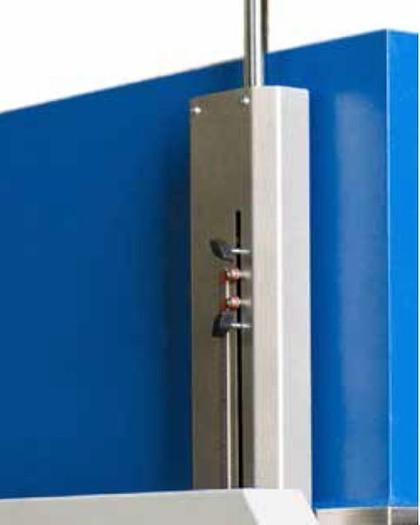

The cylinder stroke is easy to adjust with the end-stroke switches

Manual / semi-automatic work mode

Two cylinder speeds

Pressure switch and manometer

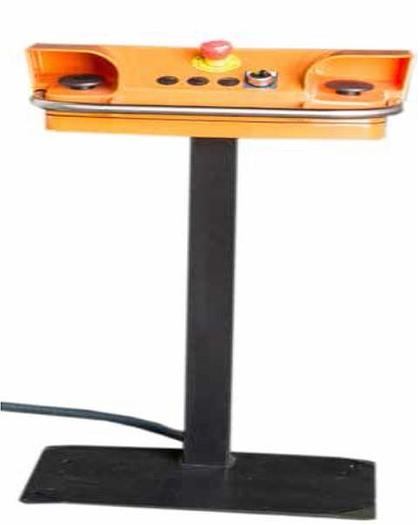

Operation by two-hands push buttons

Optional accessories:

Geometry adapted to your requirements (for example a larger table, larger vertical light or larger piston stroke)

Higher speeds with a different pump

Hydraulic ejector

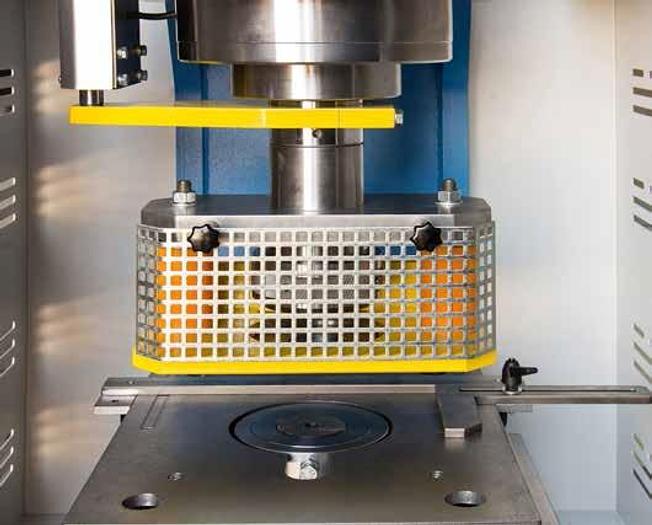

Punching tool-set for diameters from 6 up to 100 mm with anti-deformation elastic hold-down

415 mm folding tool-set (Promecam clamping system)

Cooling equipment for the hydraulic group by an air-oil cooling system


ModelPPCD-50 C-Frame Press
Force [tn]50
Motor power [kw]4
Throat depth [mm]265
Working speed [mm/sec]6.3
Approaching speed [mm/sec]31
Return speed [mm/sec]42
Maximum pressure [bar]320
Piston stroke [mm]250
Lower table size [mm]450 x 450
Max. vertical light [mm]400
Working height [mm]850
Total length [mm]1170
Total width (frontal) [mm]740
Height [mm]2080
Weight [kg]1480
