RHTC PPHB-28NC with standard tooling set and including NC
Description
RHTC Presses PPHB-28NC with standard tooling set and including NC
The horizontal bending and straightening press from Profi Press is a universal hydraulic press that has been designed to perform bending, profiling and straightening operations. The applications of the machine vary depending on the accessories that can be installed on the worktable, on the tool mount and in the punch- and pin holes.
Our 28 ton horizontal press can be used for many different metal working jobs.
The press has a piston stroke of 180 mm and can be equipped with all kinds of tooling for specific bending or straightening jobs.
We supply a standard toolingset with this press including a stampholder and backgauge. However, we also produce custom-made tooling for your specific request.
Thanks to the NC-control you can easily set the cylinder stroke and save up to 100 working cycles
This 28 ton horizontal press is made in Europe.
Technical specifications:
Pressure force [tn]: 28
Motor power [kW]: 4
Piston stroke [mm]: 195
Piston diameter [mm]: 130
Oil delivery [ltr/min]: 8
Min. working speed [mm/sec]: 2
Max. working speed [mm/sec]: 9.8
Return speed [mm/sec]: 20
Pressure max. [bar]: 200
Cylinder stroke [mm]: 180
Useful table size (L x W) [mm]: 300 x 550
Bending capacity flat steel [mm]: 200 x 10
Total length [mm]: 1150
Total height [mm]: 1103
Working width [mm]: 750
Weight [kg]: 800
Features

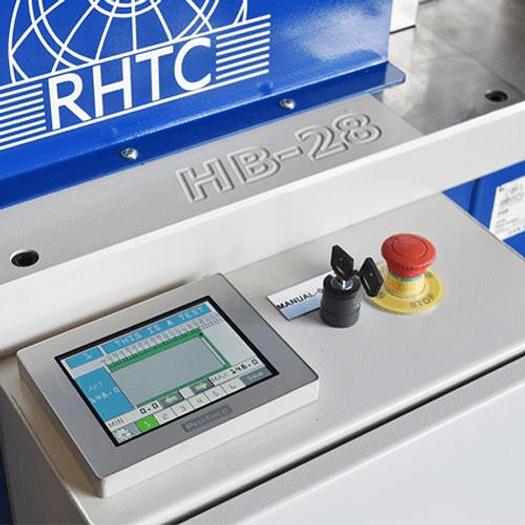

NC-control to set the piston stroke and save up to 100 programs
Selector for manual or semi-automatic operation
Flow adjustment valve and pressure control valve
Integrated pressure manometer

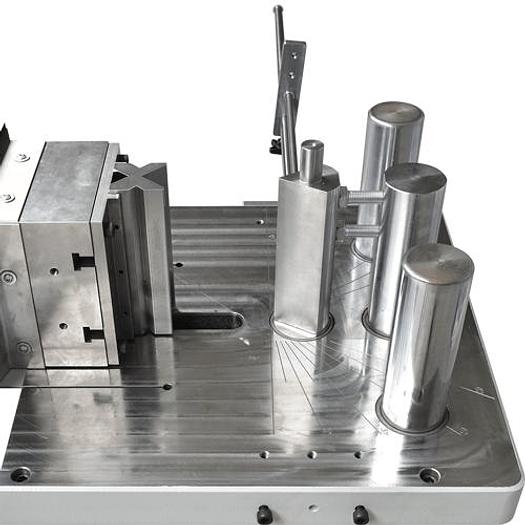

Worktable with an angular graduation
Back gauge

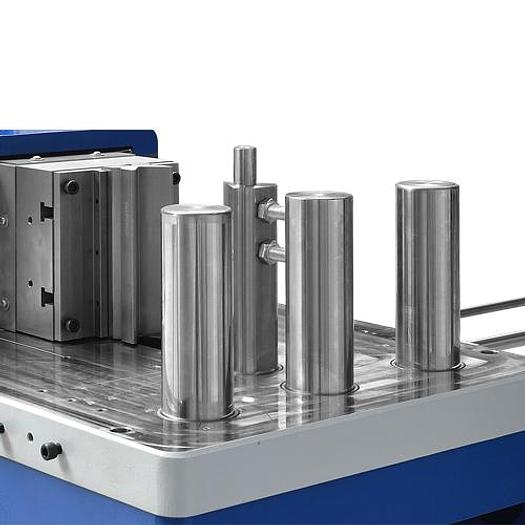

We provide different tooling to install on the worktable, on the tool mount and in the punch- and pin holes for a wide range of operations and tasks
Optional accessories
Tool for bending material with a large radius
Accessory for bending a rod (symmetrical)
Tool for bending sheet metal into specific shape
Several stamps and dies
Specifications
| Manufacturer | RHTC |
| Model | PPHB-28NC with standard tooling set and including NC |
| Condition | New |
| Pressure force [tn] | 28 |
| Motor power [kW] | 4 |
| Piston stroke [mm] | 195 |
| Piston diameter [mm] | 130 |
| Oil delivery [ltr/min] | 8 |
| Min. working speed [mm/sec] | 2 |
| Max. working speed [mm/sec] | 9.8 |
| Return speed [mm/sec] | 20 |
| Pressure max. [bar] | 200 |
| Cylinder stroke [mm] | 180 |
| Total length [mm] | 1150 |
| Total height [mm] | 1103 |
| Working width [mm] | 750 |
| Weight [kg] | 800 |
