Hydrafeed Multifeed MX-1B Barfeed
Description
Hydrafeed Multifeed MX-1B Barfeeder
Machine Type: Barfeed for CNC Lathe
Interface: Previously connected to a Mori Seiki NL CNC Lathe
Condition: Working Well
Description
Hydrafeed Multifeed MX – 1B Barfeed. The Multifeed is an electro-pneumatic Barfeed offering a simple and economical solution to maximise your productivity. An adaptable, quality Barfeed that increases the automation of your CNC turning equipment with minimal operator involvement.
Standard Features
Interface with any machine tool
Random bar lengths accepted
Swing-aside facility
Small footprint
Quick and easy set-up
User friendly
Low maintenance
Environmentally friendly
CE Certified
Technical Specifications
Bar Capacity: 3 to 80mm
Min Bar Length: 200mm
Max Bar Length: 1650mm
Max Stroke: 1700mm
Magazine Capacity: 30 x Ø25mm or equivalent
Electrical Connection: 380-415V
Compressed Air Requirement: 5-7bar
Dimensions(approx): 2100x970x1200mm
Weight(approx): 460kg
Specifications
| Manufacturer | Hydrafeed |
| Model | Multifeed MX-1B Barfeed |
| Condition | Used |

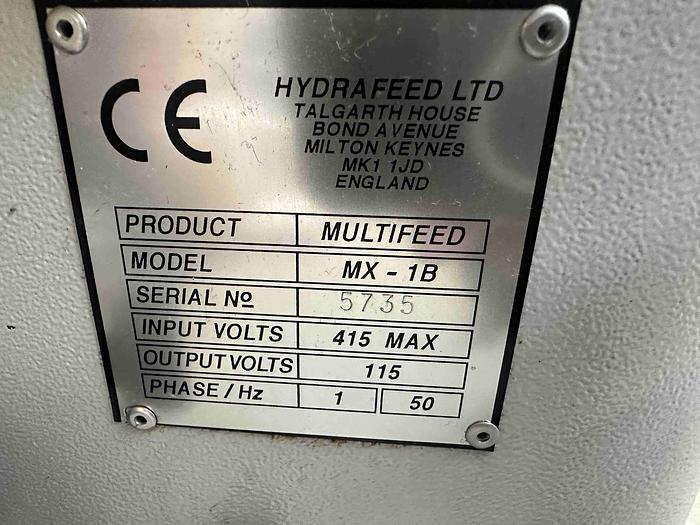

| Serial Number | 5735 |
| Machine Type | Barfeed for CNC Lathe |
| Condition | Working Well |
| Bar Capacity | 3 to 80mm |
| Min Bar Length | 200mm |
| Max Bar Length | 1650mm |
| Max Stroke | 1700mm |
| Electrical Connection | 380-415V |
| Compressed Air Requirement | 5-7bar |
| Dimensions(approx) | 2100x970x1200mm |
| Weight(approx) | 460kg |
