€11,325 + VAT

Cormak MFM 250 Milling Machine

Ireland

orCall +353 838108745

Description

Cormak MFM250 Manual Milling Machine

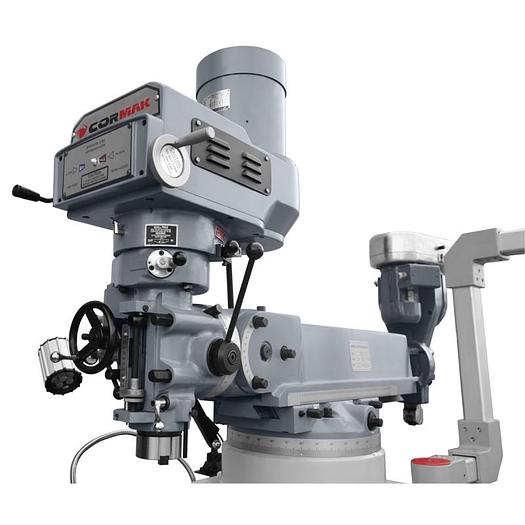

Turret milling machine with a swivel head in 3 axes. The machine has very wide capabilities, which can be used in one off parts and in production. Machine Description

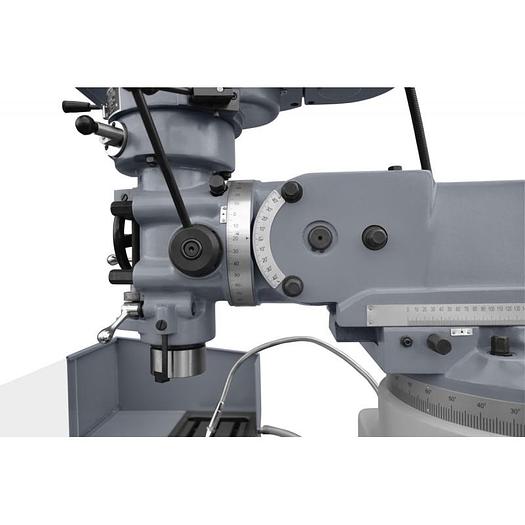

  • Head tilting in 2 axes right/left inclination ±90, front/back pivoting ±45°
  • 3 automatic feeds
  • Manual collet feed
  • Right/left movement switch
  • Central spindle, nuts and guides lubrication system
  • Manual spindle brake
  • Cooling system with chips container

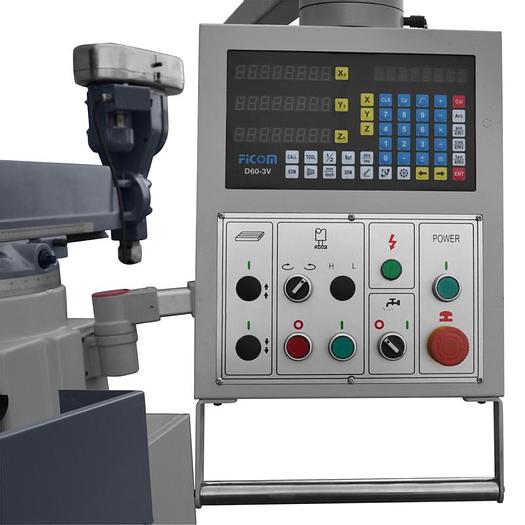

  • 3 axes digital display

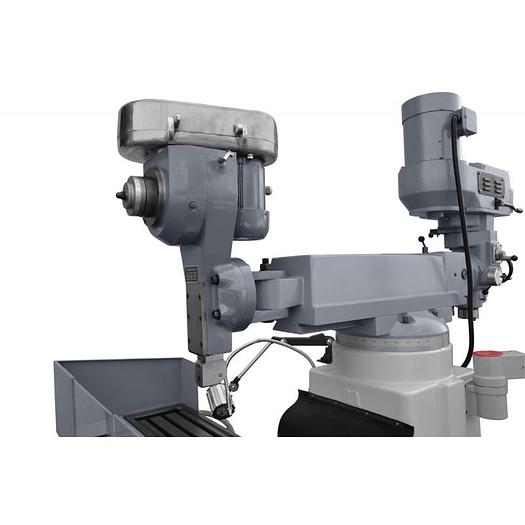

Please Note: Slotting head in photos not included with machine as standard Technical Specification Table dimensions: 1370 x 254 mm Longitudinal table travel (x): 850 mm Cross-table travel (y): 400 mm Knee travel (z): 420 mm Spindle distance to table: 0 - 405 mm Spindle taper: ISO 40 Quill Travel: 127 mm Spindle speeds:(16 speeds) 65 - 4500 rpm Motor power:3 kw Dimensions:2550 x 2200 x 2240 mm Weight:1550 kg

Specifications

ManufacturerCormak
ModelMFM 250 Milling Machine
ConditionNew
