JCX Rollforming Line for Corrigate and Box Profile
Description
JCX Roll Forming Line
Machine Type: Roll Forming Line for Corrigate & Box Profile
Condition: Machine Running Well. Shear blade for box profile needs to be replaced. Machine now decommissioned but can be partially ran for viewings.
Notes

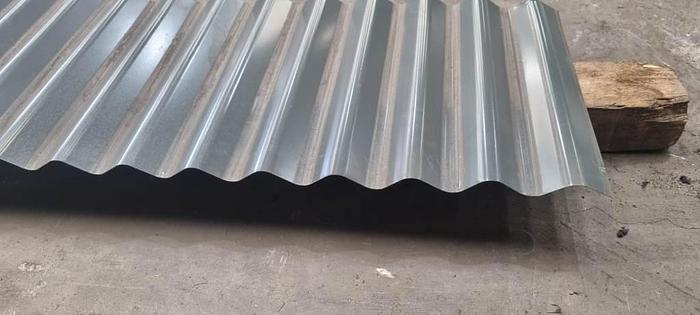

This machine ran 1220mm wide coil for Corrigate and 1250mm wide coil for Box Profile. Max material thickness used was 0.7mm
Technical Specifications
Max Coil Width: 1250mm
Max Material Thickness: 0.8mm

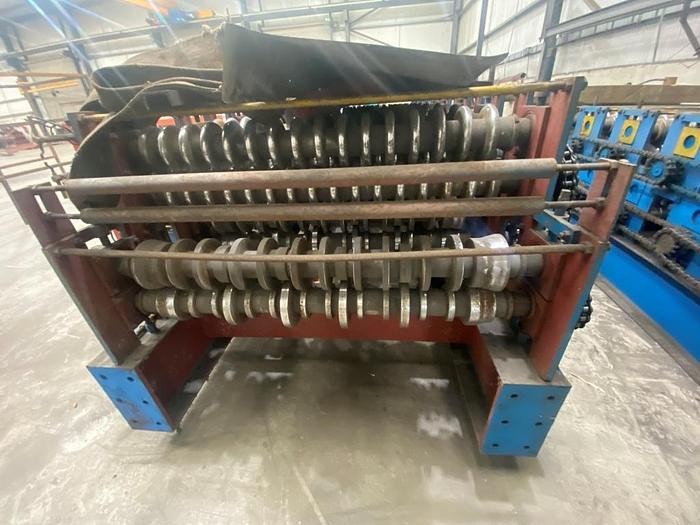

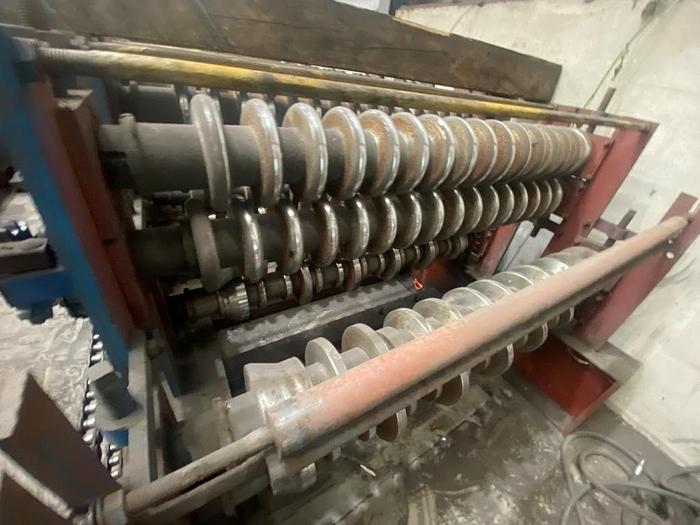

Roller material: No.45 forged steel
Forming speed: Approx 15-20m/min
Output speed: 10-13m/min
Speed adjusting mode: AC Frequency

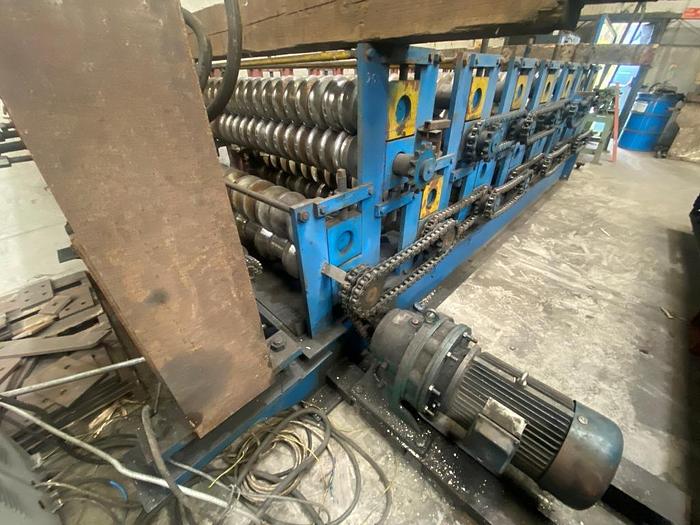

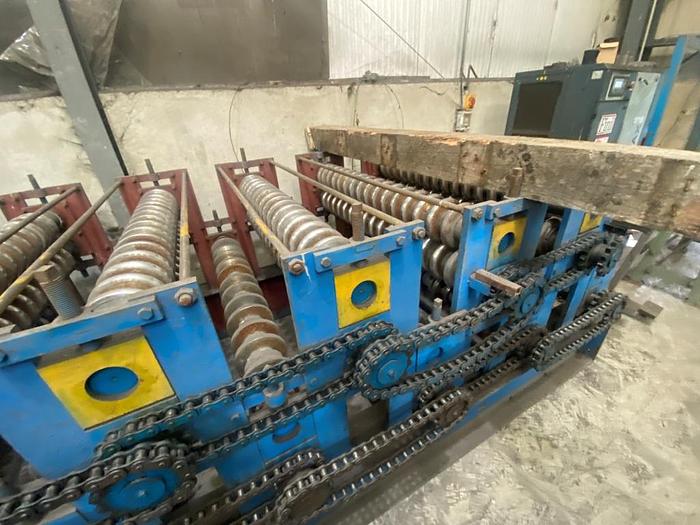

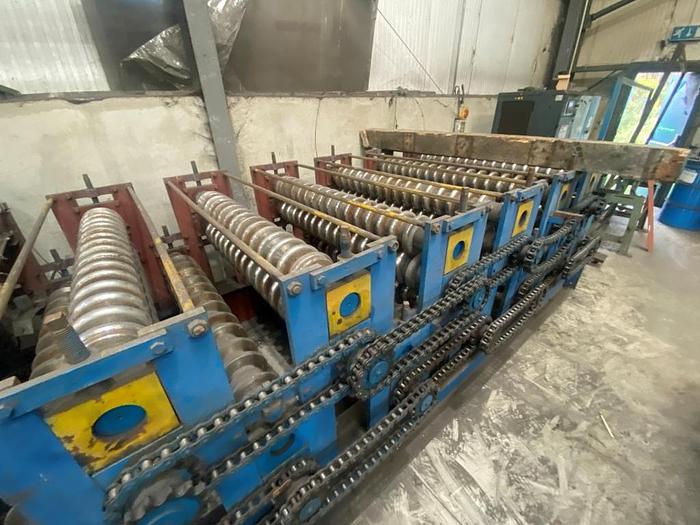

Roller drive: Decelerating motor + Chain drive
Cutting mode: Hydraulic cutting
Cutter material: Cr12 mould steel
Length measurement: Encoder

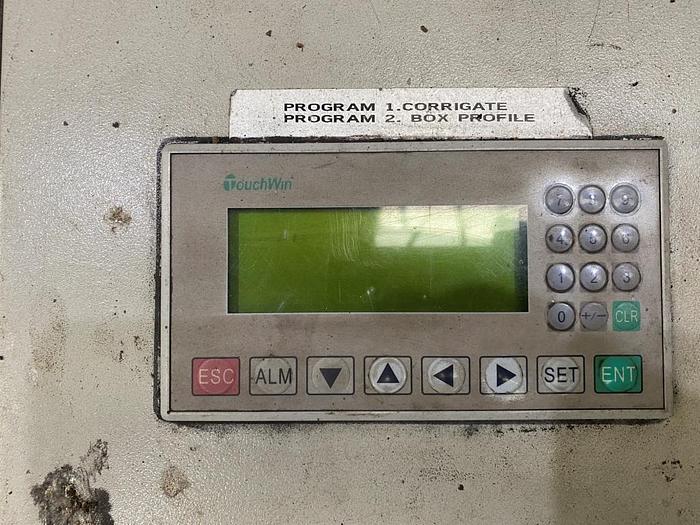

Control mode: Panasonic or Delta PLC

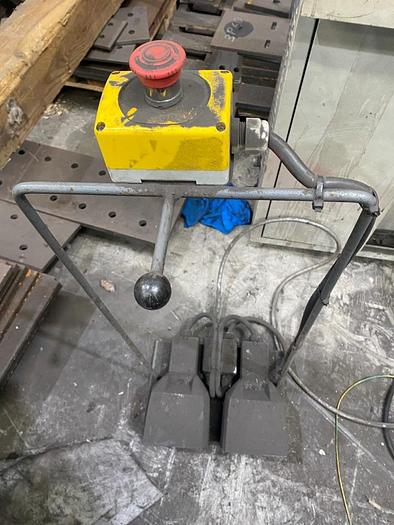

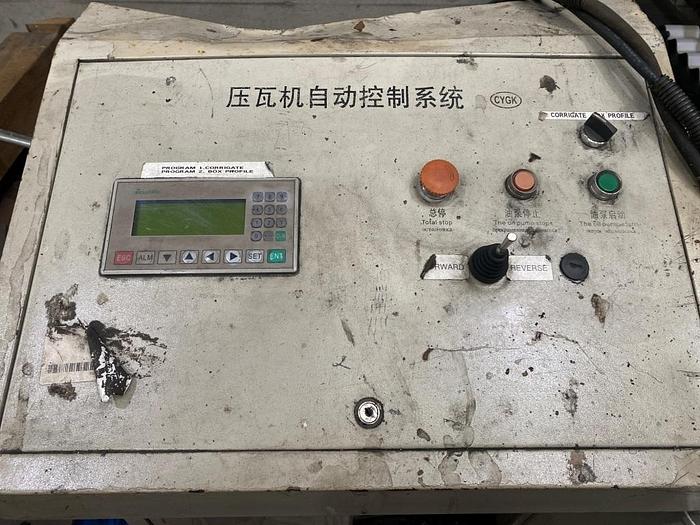

Operating mode: Button + Panasonic/Delta Touch screen
Main motor: 4KW

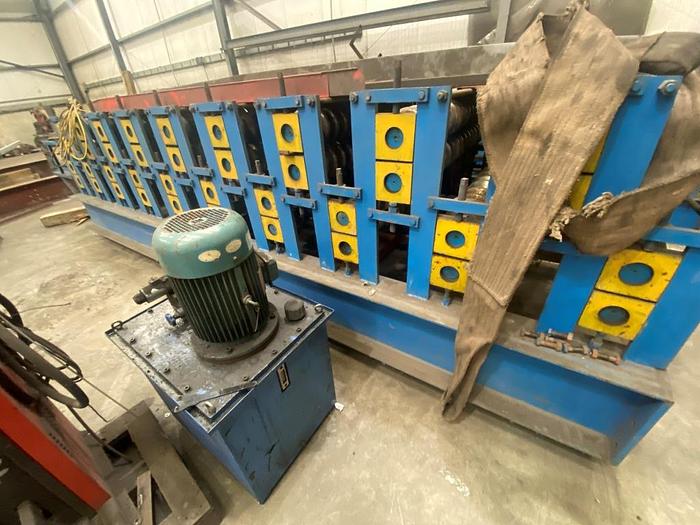

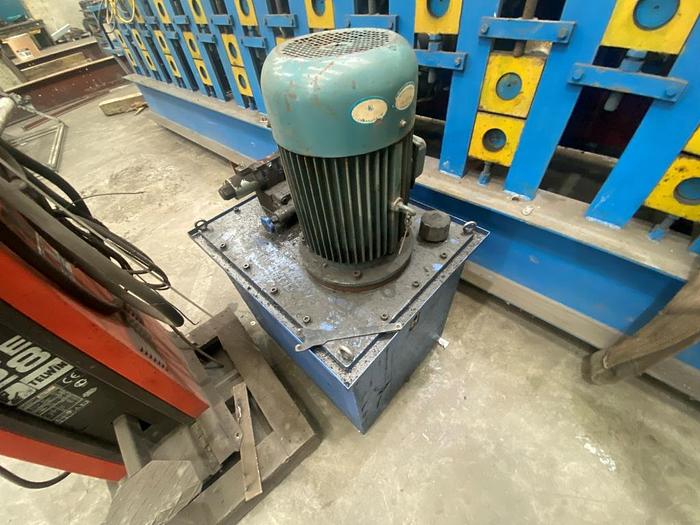

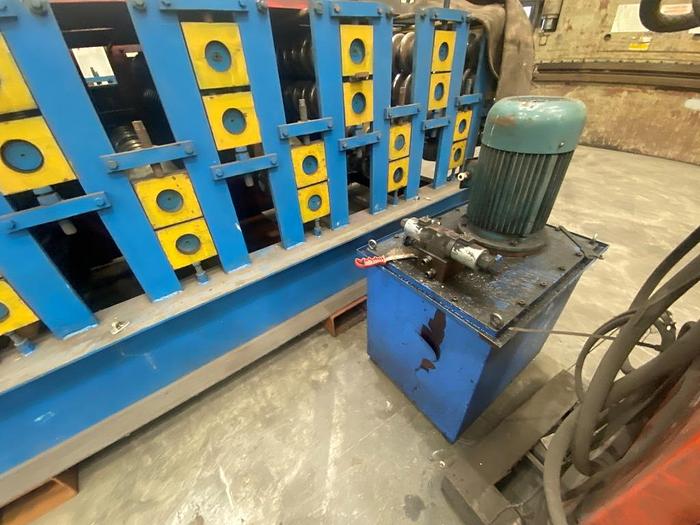

Hydraulic station motor: 3KW
Specifications
| Manufacturer | JCX |
| Model | Rollforming Line for Corrigate and Box Profile |
| Condition | Used |
| Max Coil Width | 1250mm |
| Max Material Thickness | 0.8mm |
| Roller material | No.45 forged steel |
| Forming speed | Approx 15-20m/min |
| Output speed | 10-13m/min |
| Speed adjusting mode | AC Frequency |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mould steel |
| Length measurement | Encoder |
| Control mode | Panasonic or Delta PLC |
| Main motor | 4KW |
| Hydraulic station motor | 3KW |
