€7,620 + VAT

Cormak ZX 7550 CW Universal Milling Machine

Cork, Ireland

orCall +353 838108745

Description

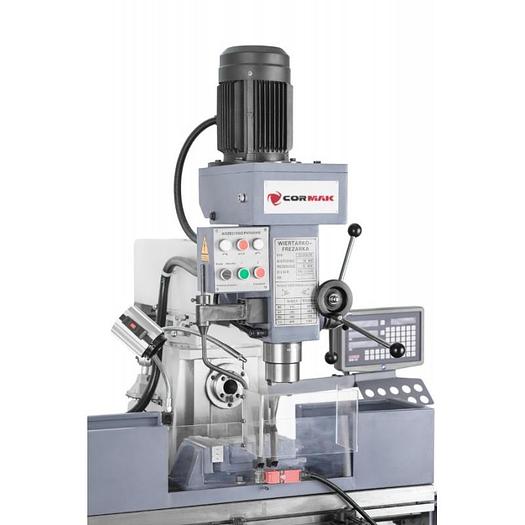

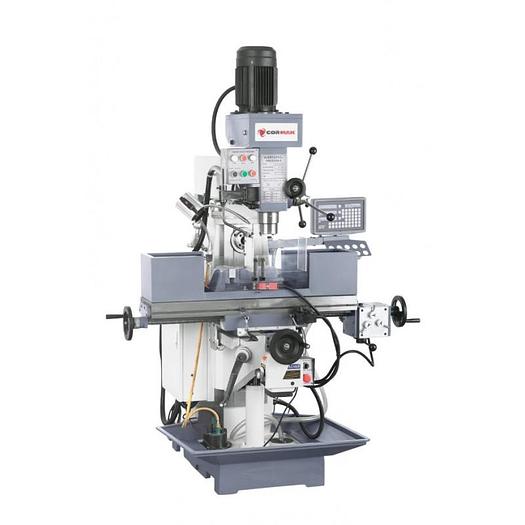

Cormak ZX 7550 CW Universal Milling Machine


Compact, universal milling machine with a swivel head, an extendable quill and a horizontal spindle. By default equipped with automatic mechanical longitudinal feed and electric transverse autofeed. Intended for tool shops and renovation departments. Machine Description • Automatic Table Feed X & Y Axis • Mechanical Table Feed In Z Axis • Heavy Stable Construction • Large Cross Table With Precisely Ground Surface • Precision Guides In All 3 Axes • Silent Operation Thanks To Ground Gear Wheels • Left And Right Head Rotation • Turret Head +/- 90 °

Technical Specification Max. drilling diameter: 50 mm

Max. horizontal milling length: 100 mm

Max. vertical milling diameter: 25 mm

Max. threading diameter: M16

Max. boring diameter: 120 mm

Spindle taper: ISO 40

Number of spindle speeds: 8

Spindle speed range Vertical(rpm): 115-1750 rpm

Spindle speed range Horizontal: 60-1350 rpm

Distance between spindle and column surface: 200-700 mm

Distance between spindle and table: 100-480 mm

Distance between spindle axis and table: 0-380 mm

Table size: 1000x240 mm

Table travel: 600x230 mm

Table feed: 24-720 mm / min (8 speed)

Spindle feed: 0.015; 0.08; 0.25 mm / rev

Spindle Motor (R / H): 1.5 kW / 1.5 kW

Overall dimensions: 1120x1060x2035 mm

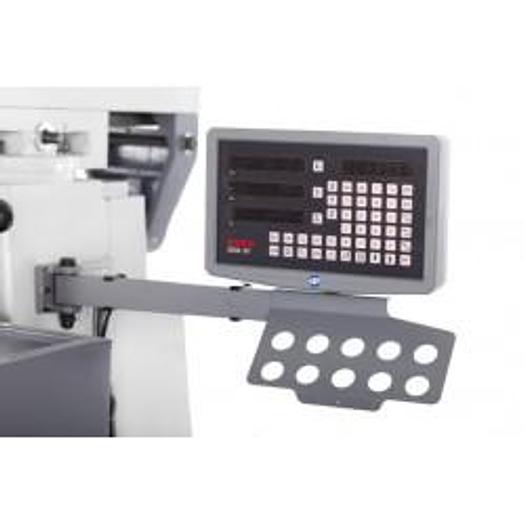

Weight: 970 kg Included Equipment • 3 Axes SIno Digital Readout • ISO 40 Morse reduction sleeves • Drill chuck B16 • Declaration of conformity CE • Machine vice L - 160 mm • Milling spindle complete with clamping sleeves for end mills • Basic tools • 24V halogen lighting installation • Cooling system • Instruction Manual Optional Extras • Rotary Vices • Tilting Vices • Precision Vices • Dividing Tables • Dividing Heads • threading heads • Clamping Set

Specifications

ManufacturerCormak
ModelZX 7550 CW Universal Milling Machine
ConditionNew
Max. drilling diameter50 mm
Max. horizontal milling length100 mm
Max. vertical milling diameter25 mm
Max. threading diameterM16
Max. boring diameter120 mm
Spindle taperISO 40
Number of spindle speeds8
Spindle speed range Vertical(rpm)115-1750 rpm
Spindle speed range Horizontal60-1350 rpm
Table size1000x240 mm
Table travel600x230 mm
Overall dimensions1120x1060x2035 mm
