€32,195 + VAT

RHTC PPRM - 80 Production Press

5

Netherlands

orCall +353 838108745

Description

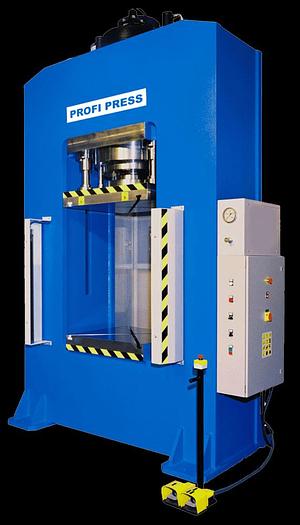

RHTC Presses PPRM - 80


Our 80 ton production press is suitable for stamping, die-cutting, deep-drawing and forming. This hydraulic press can be incorporated in automated production lines as well.

We produce this robust production press in Europe. Delivered according to the latest CE-standards: high quality guaranteed!


These hydraulic production presses are suitable for stamping, die-cutting and forming and can be incorporated in automated production lines. Made in Europe

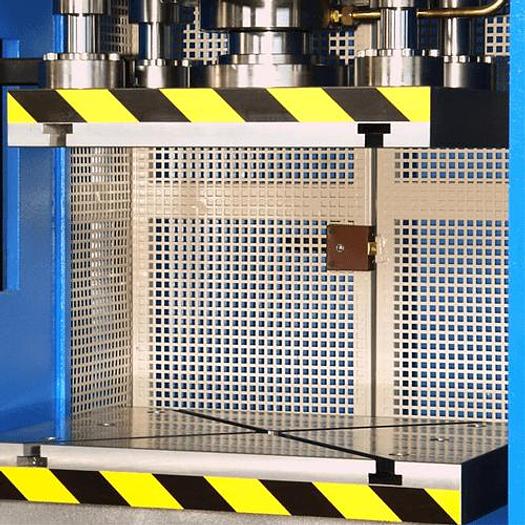

The production presses are equipped with a mechanized upper- and lower table with T-grooves. Four cylindrical, lateral guides are installed to ensure perfect alignment in the vertical movement of the upper table.

Adjustments to the position of the upper table (piston stroke) and changes in speed are controlled from a side control panel.

The control panel features a selector for manual, semi-automatic or automatic operation and a selector for the two different cylinder speeds (fast approach speed and slow working speed). It also contains a pressure switch and manometer. Operation of these PPRM-models is carried out by a foot pedal.

The production presses are equipped with level IV light guards situated at the front of the press, two fixed lateral protection panels and protection panels (which can be opened) with a magnetic detector disconnection switch situated at the rear.


Available in:

PPRM-80

PPRM-100

PPRM-150

PPRM-220

PPRM-300

PPRM-500


Technical specifications:

Pressure force [tn]: 80

Motor power [kW]: 5.5

Working speed [mm/sec]: 6

Approaching speed [mm/sec]: 25

Returning speed [mm/sec]: 36

Piston stroke [mm]: 250

Vertical light [mm]: 400

Frontal light [mm]: 800

Lower table size [mm]: 700 x 500

Upper table size [mm]: 600 x 450

Guides diameter [mm]: 50

Table- / working height [mm]: 900

Total length (lateral) [mm]: 1025

Total width (frontal) [mm]: 1500

Overall height [mm]: 2500

Weight [kg]: 2080


Features:

Rigid and robust machine frame

Upper- and lower table with T-grooves

Four cylindrical lateral guides for a perfect alignment of the upper table

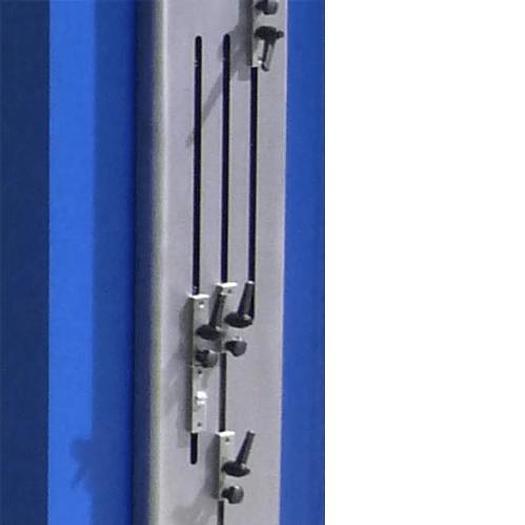

Adjustable piston stroke and change of speed position with limit-switches

Selector for manual / semi-automatic / automatic operation

Selector for working with 1 or 2 speeds

Pressure switch and manometer


Optional accessories:

Mechanical cylinder regulation for this 80 ton production press

PLC SIEMENS mod. SIMATIC S7 1200 with 7” touch screen mod. KTP-700: digital NC-control

High speed approach- and return speed by prefilling valves and lateral cylinders

Hydraulic cushion

Hydraulic ejector placed in the upper- or lower table or in both tables

Cooling equipment for the hydraulic group by an air-oil cooling system


Specifications

ManufacturerRHTC
ModelPPRM - 80 Production Press
ConditionNew
Latest CE-standardshigh quality guaranteed!
Pressure force [tn]80
Motor power [kW]5.5
Working speed [mm/sec]6
Approaching speed [mm/sec]25
Returning speed [mm/sec]36
Piston stroke [mm]250
Vertical light [mm]400
Frontal light [mm]800
Lower table size [mm]700 x 500
Upper table size [mm]600 x 450
Guides diameter [mm]50
Total length (lateral) [mm]1025
Total width (frontal) [mm]1500
Overall height [mm]2500
Weight [kg]2080
