€6,450 + VAT

Cormak 360 x 1000 Universal Lathe - 3 Phase

Cork, Ireland

orCall +353 838108745

Description

Cormak Tornado 3600 x 1000 Universal Lathe


Description

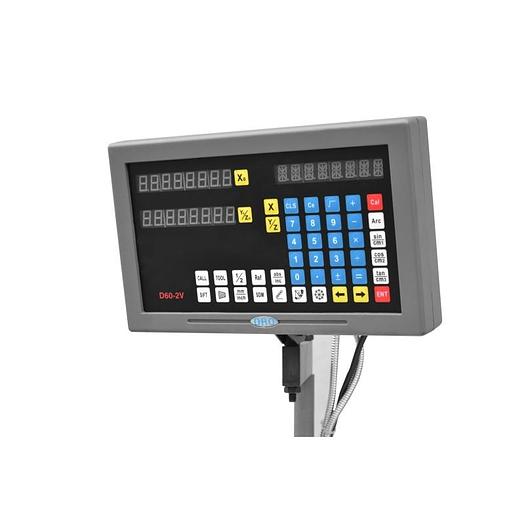

The Cormak 360 x 1000 Metal Working Lathe is a new improved version of their previous version of this machine. For example, the cover of the tool holder, the spindle bearing system, the new digital reading have been improved. They are suitable for production plants, workshops and tool rooms. Ideally suited for unit and small lot production. Features • DRO • The reinforced, ribbed surface of the lathe bed ensures maximum reduction of vibrations and additionally the bed is precisely ground and hardened • Optimum working conditions are ensured by the 52mm spindle bore • Thanks to the removable gap, it is possible to machine parts with increased diameter • Efficient machining thanks to two automatic feeds • Feed shaft and lead screw • Sliding chip drawer for better and more efficient operation • High-quality and reinforced spindle bearing system • A new protection system in accordance with CE standards • The latest model of DRO • Reinforced and modernized lathe base with tool drawers and pull out tray for chips Machine Characteristics • Induction hardened bed • Hardened gear wheels • Adjustable friction clutch on a train gear wheel • Removable gap Technical Details

Maximum turning diameter: 360 mm

Maximum turning diameter over cross slide: 220 mm

Maximum turning diameter without gap: 490 mm

Maximum turning length using top slide: 168 mm

Length of turning : 970 mm

Width of the bed:187 mm

Spindle nose:D1-4

Spindle bore: 52 mm

Spindle speeds: 90-2000 rpm

Longitudinal feed rate:0.055 - 1.291 mm / rev

Cross-slide feed rate: 0.014-0.345 mm / rev

Maximum dimension of cutting tools: 16 mm x 16 mm

Toolpost: 4 Way

Metric thread: 0.4-10 mm

Imperial thread: 4-60 tpi

Module thread: 0.2-3 mp

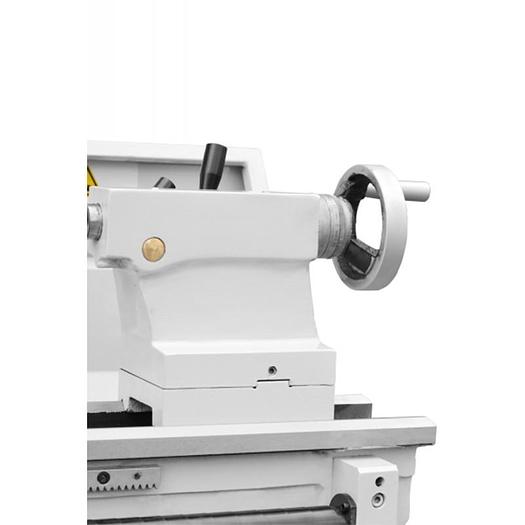

Diameter tailstock shaft: 32 mm

Tail stock taper:MT3

Motor power: 1.5 kw

Coolant pump power: 0.1 Kw

Weight: 570 kg

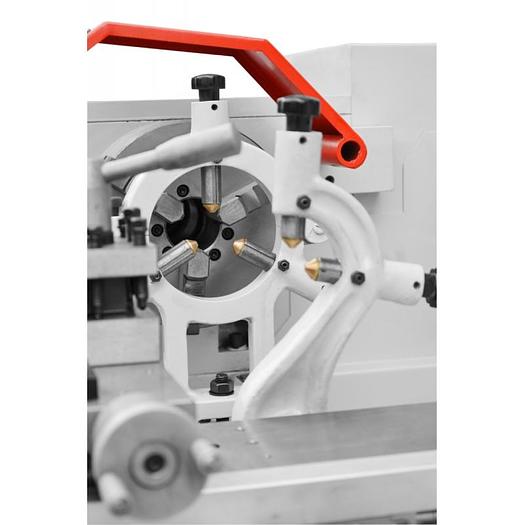

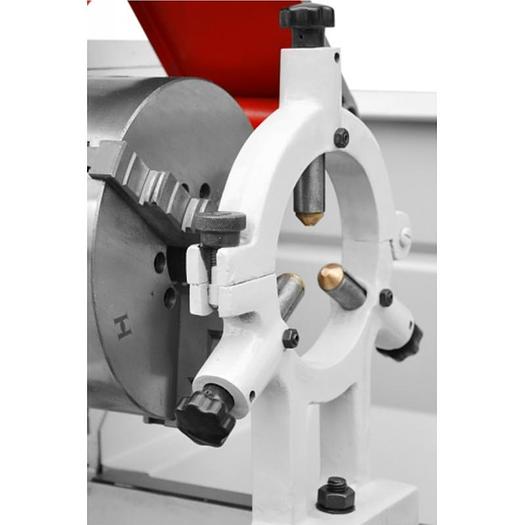

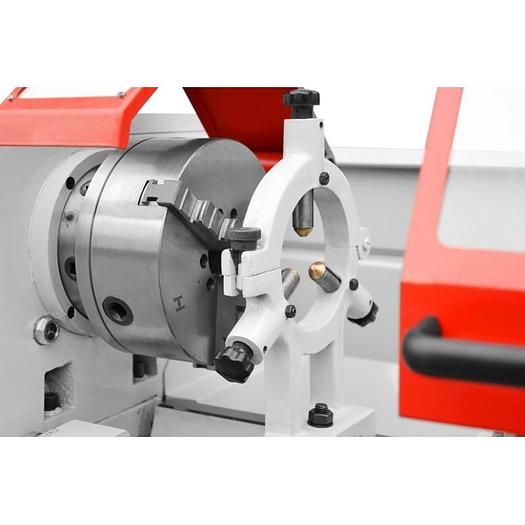

Dimensions: 1890x720x1500 mm Included Equipment DRO 3-jaw chuck 200 mm 4-jaw chuck 250 mm Chuck guard Fixed steady Travelling steady Reducing sleeve Coolant equipment Machine light Set of changing wheels Indicator / thread clock Service tools Base of lathe Instructions EC / CE compliance declaration Factory machine - 12 month warranty

Specifications

ManufacturerCormak
Model360 x 1000 Universal Lathe - 3 Phase
ConditionNew
Maximum turning diameter360 mm
Length of turning970 mm
Width of the bed187 mm
Spindle noseD1-4
Spindle bore52 mm
Spindle speeds90-2000 rpm
Cross-slide feed rate0.014-0.345 mm / rev
Toolpost4 Way
Metric thread0.4-10 mm
Imperial thread4-60 tpi
Module thread0.2-3 mp
Diameter tailstock shaft32 mm
Tail stock taperMT3
Motor power1.5 kw
Coolant pump power0.1 Kw
Weight570 kg
