Correa Prisma 20 Bed Type Milling Machine
Description

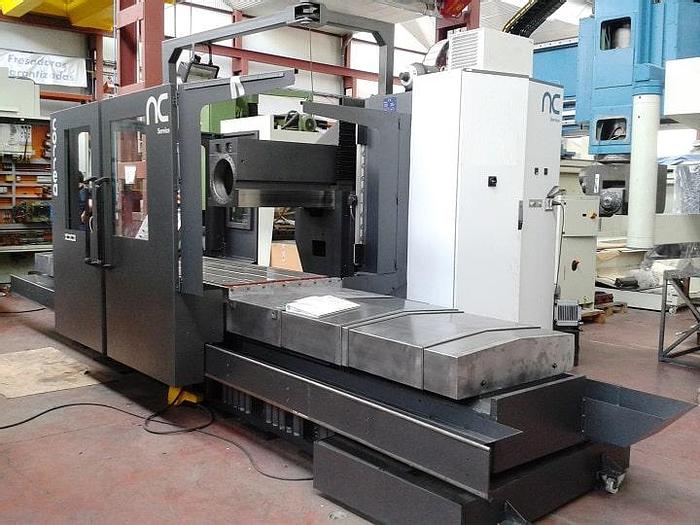

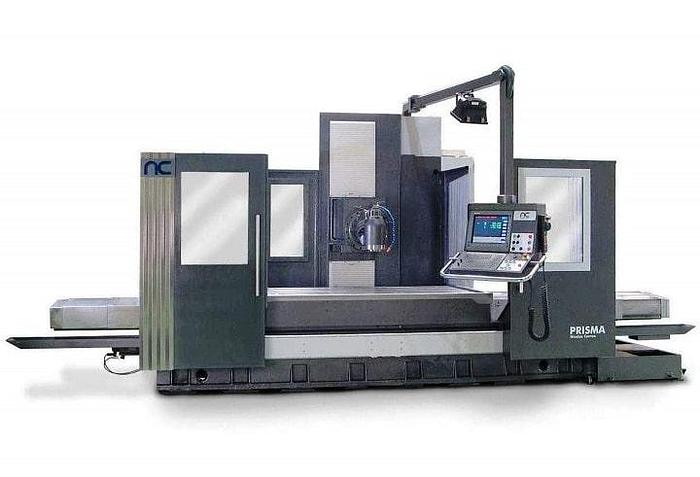

Refurbished Correa Prisma 20 Bed Type Milling Machine
Machine Type: Bed Type Milling Machine Year of Manufacture: 1990 Year Refurbished: Under Going Refurbishment
Warranty: 6 Month Warranty on Mechanical Parts
Control: Heidenhain TNC-i530
Condition: Guaranteed refurbishment
Includes
Guarding
External Coolant
Electronic Handwheel HR-410
Technical Specifications Table Size: 2300 x 900mm Max Weight of Table: 3500kg X Axis Travel: 2000mm
Y Axis Travel: 1000mm
Z Axis Travel: 1000mm
Rapid Feed Rate (X): 12000m/min
Rapid Feed Rate (Y,Z): 20,000mm/min

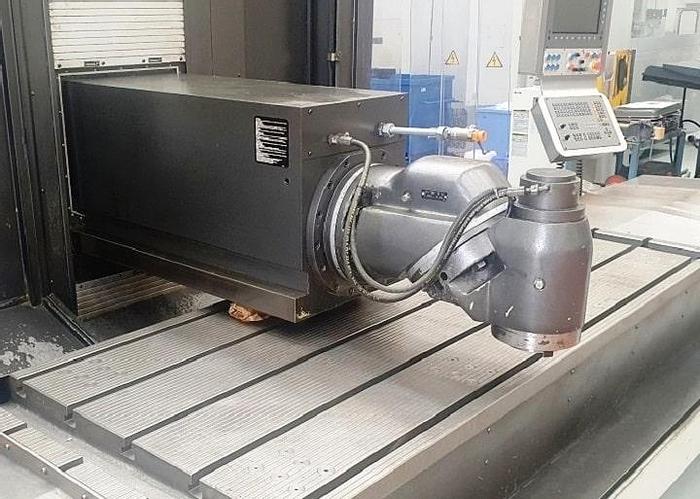

Milling Head: Manual milling head (U22)
Spindle Taper: ISO50
Max Spindle Speed: 3000rpm
Spindle Power: 22kW
Dimensions: 6367x5070x2803mm
Weight: 14000kg
Specifications
| Manufacturer | Correa |
| Model | Prisma 20 Bed Type Milling Machine |
| Condition | Refurbished |
| Stock Number | 967609 |
| Control | Heidenhain TNC-i530 |
| Condition | Guaranteed refurbishment |
| Axis Travel | 2000mm |
| Y Axis Travel | 1000mm |
| Z Axis Travel | 1000mm |
| Rapid Feed Rate (X) | 12000m/min |
| Rapid Feed Rate (Y,Z) | 20,000mm/min |
| Milling Head | Manual milling head (U22) |
| Spindle Taper | ISO50 |
| Max Spindle Speed | 3000rpm |
| Spindle Power | 22kW |
| Dimensions | 6367x5070x2803mm |
| Weight | 14000kg |
