€74,000 + VAT

2019 Milltronics SL8-II Slant Bed Turning Center

1

Ireland

orCall +353 838108745

Description

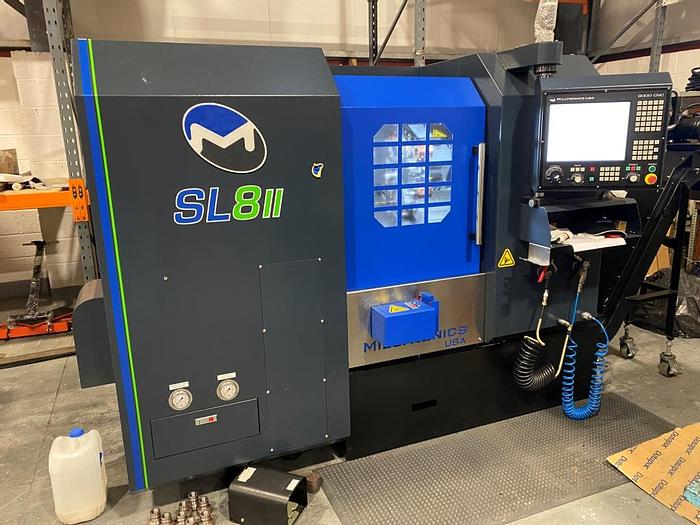

2019 Milltronics SL8-II Slant Bed CNC Lathe


Machine is in new condition and was never used


Price Includes: Commissioning & Training


Standard Features

• 8" 3-jaw hydraulic chuck w/ foot switch

• 2.54” Draw Tube I.D.

• 4,000 RPM spindle

• 12 position auto turret with 1” slots

• True slant bed with one-piece base casting

• Linear motion guideways with Roller Type Bearings

• Full enclosure with sliding door

• Flood coolant

• Auto lubrication


• Milltronics 9000 series CNC control

• Part, wire frame & solid model graphics

• Constant Surface Speed (CSS)

• 120 GB solid-state hard drive

• 15" LCD color touch screen display

• Spindle load meter

• LCD hour meter

• Hydraulic tailstock w/ foot switch (option)

• One-year warranty


Specifications

Capacity

X axis travel: 8" (203 mm)

Z axis travel: 21.7" (550 mm)

Swing over bed: 20.7" (525 mm)

Swing over cross slide: 11.8" (300 mm)

Max turning diameter: 14" (356 mm)

Max turning length: 20.7” (525 mm)


Spindle

Spindle nose: A2-6

Draw tube inner diameter: 2.54" (64.5 mm)

Spindle bore diameter: 3.07” (78 mm)

Chuck size: 8" (203 mm)

Spindle range: 0-4000 RPM

AC spindle motor: 22/15 HP (14.9/11.2kW)

Maximum Spindle torque: 135 ft-lbs (183 N.m) @ 870 RPM


Turret

Number of tools: 12

Tooling size: 1” x 1" (25 x 25 mm)

Boring bar capacity: 1.5" (40 mm)

Tool selection: Bi-directional

Turret Index Time (1 position): 0.6 sec.


Tailstock

Tailstock quill travel: 3.46" (88 mm)

Tailstock quill diameter: 2.28" (58 mm)

Maximum quill thrust: 550 lbs (250 kg)

Tailstock quill taper: MT4


Feeds

X, Z axis rapid traverse rate: 1,181 IPM (30 m/min)

Max. cutting feed rate: 400 IPM (10.16 m/min)

X axis ball screw diameter: 1.25" (32 mm)

Z axis ball screw diameter: 1.25" (32 mm)

Positioning accuracy*: +/- 0.0002" (+/- 0.005 mm)

Repeatability*: 0.0002" (0.005 mm)

Axis thrust force X,Z: 1,851 lbs. (8.2 kN)


General

Machine Height: 72.1” (1,831 mm)

Floor Space Required (W x D): 142.2” (3,612 mm) x 102.6” (2,606 mm)

Machine Weight: 8,885 lbs. (4,030 kg)

Power required: 17 KVA / 43 amps

Voltage required: 208-240 Volts / 3 Phase


(*) Accuracy and repeatability tested per VDI 3441. Temperature, loads and machine placement can affect tolerances.


Specifications

ManufacturerMilltronics
ModelSL8-II Slant Bed Turning Center
Year2019
ConditionUsed
X axis travel8" (203 mm)
Z axis travel21.7" (550 mm)
Swing over bed20.7" (525 mm)
Swing over cross slide11.8" (300 mm)
Max turning diameter14" (356 mm)
Max turning length20.7” (525 mm)
Spindle noseA2-6
Draw tube inner diameter2.54" (64.5 mm)
Spindle bore diameter3.07” (78 mm)
Chuck size8" (203 mm)
Spindle range0-4000 RPM
AC spindle motor22/15 HP (14.9/11.2kW)
Number of tools12
Boring bar capacity1.5" (40 mm)
Tool selectionBi-directional
Tailstock quill travel3.46" (88 mm)
Tailstock quill diameter2.28" (58 mm)
Maximum quill thrust550 lbs (250 kg)
Tailstock quill taperMT4
Max. cutting feed rate400 IPM (10.16 m/min)
Repeatability*0.0002" (0.005 mm)
Axis thrust force X,Z1,851 lbs. (8.2 kN)
Machine Height72.1” (1,831 mm)
Machine Weight8,885 lbs. (4,030 kg)
