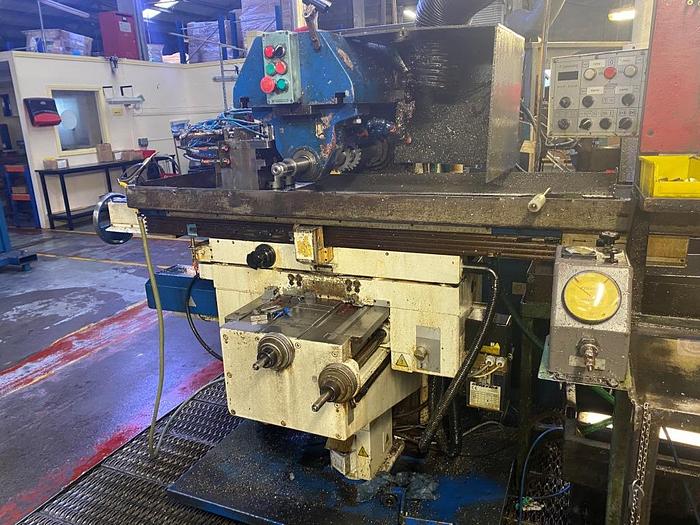

2010 TOS Olomouc FGU 32 Horizontal Milling Machine

1

Cork, Ireland

Sold

Description

2010 TOS Olomouc FGU 32 Horizontal Milling Machine


Year: 2010

Manufacturer: TOS Olomouc

Model: FGU 32

Condition: Very Good


Machine Description

The FGU32 type is a high efficiency production milling machine with horizontal spindle. It is designed for precision and productive milling of flat or box-section workpieces up to 250 kg weight occurring in the one-off or batch production.


The wide range of spindle speeds and feeds enables effective milling of all metals with tools made from a high speed steel or a hard-metal. The split cross table enables the longitudinal table to be swiveled about its vertical axis thereby considerably extending the technological possibilities of the machine.


Technical Specifications

Table Size: 1400 x 360mm

X Axis Travel: 1020mm

Y Axis Travel: 300mm

Z Axis Travel: 435mm

Spindle Speeds: 31.5 - 1400rpm

Max Work-piece Weight: 250kg

Spindle Taper: ISO 50

Automatic Feeds: X,Y,Z (step-less)

Hand-wheels in axes X,Y and Z with measuring dials - dividing 0,02 mm

Drive for special attachment

Climb-cut milling in longitudinal axis

Motor Power: 5.5kW

Total Input Power: 13kVA


Advantages

High rigidity and geometrical accuracy

Step-less feeds in all 3 axes by means of a frequency converter

Hardened guideways

Climb-cut milling in longitudinal axis

Automatic working cycles in longitudinal axis with knee drop (Special execution)

Swiveling of longitudinal table

Simple operation

Central lubrication system (manually operated)

Compact machine design



Machine Dimensions: 2995 x 2000 x 1980mm

Machine Weight: 1980kg

Specifications

ManufacturerTOS Olomouc
ModelFGU 32 Horizontal Milling Machine
Year2010
ConditionUsed
Serial Number322002437
Year2010
ManufacturerTOS Olomouc
ModelFGU 32
Table Size1400 x 360mm
X Axis Travel1020mm
Y Axis Travel300mm
Z Axis Travel435mm
Spindle Speeds31.5 - 1400rpm
Max Work-piece Weight250kg
Spindle TaperISO 50
Automatic FeedsX,Y,Z (step-less)
Motor Power5.5kW
Total Input Power13kVA
Machine Weight1980kg
