€9,890 + VAT

RHTC 100 ton M/H-M/C-2 D=1500mm Motorized Workshop Press

5

Netherlands

orCall +353 838108745

Description

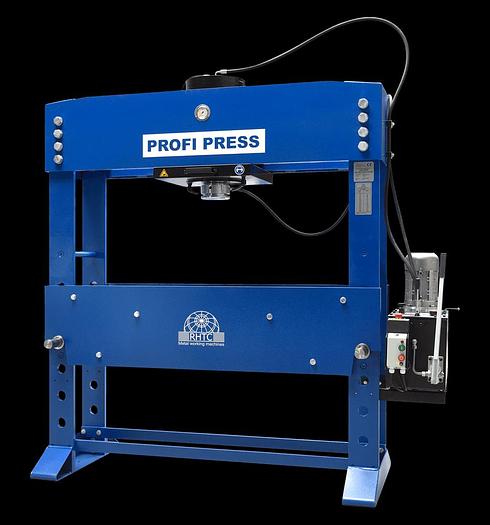

RHTC Presses 100 ton M/H-M/C-2 D=1500mm


This 100 ton hydraulic press has an extra wide working width (1500 mm) for handling larger materials.

Equipped with a movable cylinder (left-right), in-height adjustable working table, pressure regulation, 2 speeds, joystick and a hand pump for precision pressing.


The motorized workshop presses from RHTC are exclusively made in the Netherlands and eminently suitable for general assembly and straightening work or testing work pieces: a must-have for every workshop.

These Profi Press models are made out of quality steel and the hydraulic system is very precise, whether operated electrically or manually with its hand pump.


Available in:

  • 30 TON M/H-2
  • 60 TON M/H-M/C-2
  • 100 TON M/H-M/C-2
  • 100 TON M/H-M/C-2 D=1500
  • 160 TON M/H-M/C-2
  • 160 TON M/H-M/C-2 D=1500
  • 200 TON M/H-M/C-2
  • 300 TON M/H-M/C-2


Technical specifications:


Pressure force [kN]: 981

Maximum pressure [bar]: 258

Piston stroke [mm]: 380

Oil delivery [ltr/min]: 5.64/17.2

Oil capacity [dm³]: 46

Working speed [mm/sec]: 2.47

Approaching speed [mm/sec]: 7.54

Return speed [mm/sec]: 9.06

Motor power [kW]: 2.2

Voltage [V]: 400/3

Frequency [Hz]: 50/60

Revolutions per minute [rpm]: 3000

Insulation protection [IP]: 54

Working width [mm]: 1500

Weight [kg]: 1145


Diameters:


Inside diameter of cylinder [mm]: 220

Diameter of piston rod [mm]: 90

Diameter of piston head [mm]: 120














Specifications

ManufacturerRHTC
Model100 ton M/H-M/C-2 D=1500mm Motorized Workshop Press
ConditionNew
Stock Number00222
Pressure force [kN]981
Maximum pressure [bar]258
Piston stroke [mm]380
Oil delivery [ltr/min]5.64/17.2
Oil capacity [dm³]46
Working speed [mm/sec]2.47
Approaching speed [mm/sec]7.54
Return speed [mm/sec]9.06
Motor power [kW]2.2
Voltage [V]400/3
Frequency [Hz]50/60
Revolutions per minute [rpm]3000
Insulation protection [IP]54
Working width [mm]1500
Weight [kg]1145
