Cormak S-280R Semi Automatic Bandsaw
Description

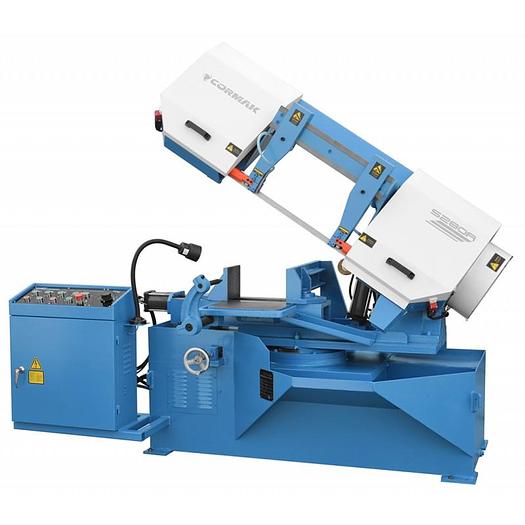

Cormak S-280R Semi-Automatic Bandsaw
Machine Type: Semi-Automatic Single Mitre Bandsaw
Machine Description
This CORMAK S-280R band saw is as standard equipped with automatic arm lowering and raising as well as with a precise arm height regulator. Due to an automatic hydraulic damper, the manual handling of the machine has been simplified to feed and clamping the cut material in a vice. The arm made of uniform iron casting, together with a refined, solid and stable construction, ensure S-280R's exceptional rigidity, resulting in failure-free handling and high cutting precision.
The innovativeness and production of semi-automatic and automatic series "CORMAK-PREMIUM LINE" band saws, compliant with the norms and standards consistent with ISO:910001 and ISO:140001 certificates, warrant safety, quality and reliability of the product. M3V motors from ABB, a renowned worldwide manufacturer, warrant long-term reliability.
Cutting Capacity
Capacity 0º (Round): 300mm
Capacity 0º (Rectangular): 280 x 300mm
Capacity 0º (Square): 280 x 280mm
Capacity 45º R (Round): 240mm
Capacity 45º R (Rectangular): 240 x 280mm
Capacity 45º R (Square): 220 x 220mm
Technical Details
Arm Raising and Lowering: Hydraulic with arm lowering smooth control
Vice Clamp: Hydraulic
Band Speed: 18/40/70 m/min
Mitre Cutting: from 0° to 55° right
Minimum Cutting Diameter: Ø 5 mm
Minimum Material Length in the Vice: 30 mm
Vice Base Height: 700 mm
Bandsaw Blade Dimensions: 27×0.9×3350 mm
Main Motor Power: 2.2 kW
Hydraulic Motor Power: 1.1 kW
Coolant Motor Power: 0.075 kW
Dimensions (LxWxH): 1950×1520×1100 mm
Weight: 850 kg
Includes
Detached Control Panel
Built-in hydraulic unit
Hydraulic control of arm motion (up – down) with possibility of smooth lowering speed control
Hydraulic vice
Arm Height limiting switch
Cutting at angles of 0°–55°
Brush for the cleaning band
Cooling system
Bi-metal band saw
EC Declaration of Conformity
Specifications
Manufacturer | Cormak |
Model | S-280R Semi Automatic Bandsaw |
Condition | New |
Capacity 0º (Round) | 300mm |
Capacity 0º (Rectangular) | 280 x 300mm |
Capacity 0º (Square) | 280 x 280mm |
Capacity 45º R (Round) | 240mm |
Capacity 45º R (Rectangular) | 240 x 280mm |
Capacity 45º R (Square) | 220 x 220mm |
Vice Clamp | Hydraulic |
Band Speed | 18/40/70 m/min |
Minimum Cutting Diameter | Ø 5 mm |
Vice Base Height | 700 mm |
Bandsaw Blade Dimensions | 27×0.9×3350 mm |
Main Motor Power | 2.2 kW |
Hydraulic Motor Power | 1.1 kW |
Coolant Motor Power | 0.075 kW |
Dimensions (LxWxH) | 1950×1520×1100 mm |
Weight | 850 kg |
