€2,577 + VAT
Alfra GmbH AHP-S Electro Hydraulic Pump
Description

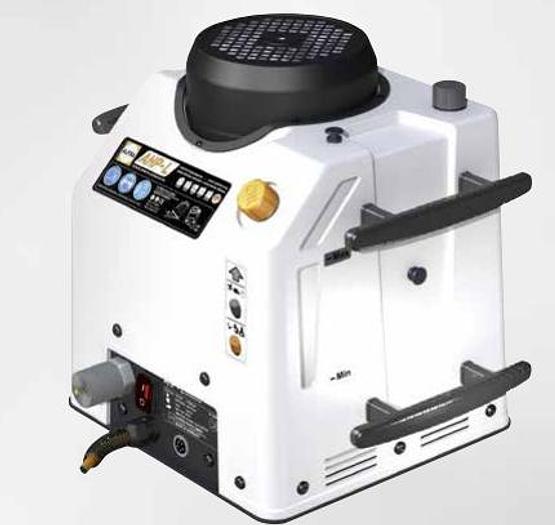

Alfra Pump AHP-S Electro Hydraulic Pump
Product No: 03854
Product Description
The AHP S from ALFRA provides the power for a variety of devices. With a pressure of 700 bar and a maximum flow rate of 0.58 liters per minute, the electro-hydraulic pump is a strong partner - for example for our hydraulic cylinders for punching sheet metal, for our devices for processing conductor rails, or for our cable cutters and pressing devices. The AHP is optionally available with hand switch or two-pedal foot switch.
Technical specifications:
Max. pressure: 700 bar
Max. Flow Rate: 0.58 l/min
Oil type: HLP 46
Fill volume: 3.2 l
Active volume: 2.2 l
Weight: 27 kg
Operating voltage: 230 V / 50 Hz
Power: 0.75 kW
Amperage: 3.26 A
Motor speed: 2800 1/min
Specifications
| Manufacturer | Alfra GmbH |
| Model | AHP-S Electro Hydraulic Pump |
| Condition | New |
| Max. pressure | 700 bar |
| Oil type | HLP 46 |
| Fill volume | 3.2 l |
| Active volume | 2.2 l |
| Weight | 27 kg |
| Motor speed | 2800 1/min |
