€715 + VAT @ 23%

Alfra GmbH Drill stand SP-V

5

Germany

orCall +353 838108745

Description

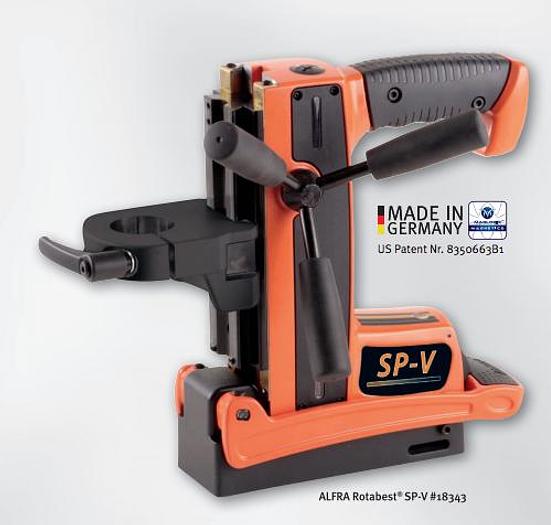

Alfra Drilling Machines Drill stand SP-V

The magnetic drill stand can be attached to ferromagnetic workpieces using the installed mechanically switchable TML permanent magnet (D). For this purpose, the magnetic lever (G) must be pressed downwards and the safety tab (F) must latch into place correctly. A self-adjusting dovetail guide (C) which the collar (A) is attached to can be vertically adjusted using the star handle (H). Wired, mains-operated drilling machines can be fixed tightly to this collar (Ø 43 mm). As an additional torque support there is a nose on the collar in order to engage the drilling machine into the collar. The type plate and an attachment possibility for the Allen keys included can be found on the back of the machine.


This magnetic drill stand with a tool holder of Ø 43 mm (Euro collar) and a switchable ALFRA TML permanent magnet is intended for use with wired, mains-operated drilling machines. Combined with a drilling machine, this magnetic drill stand is destined to be used with core or solid drills on ferromagnetic workpieces. It may only be used in a dry environment which is protected from the weather. The machine may be used horizontally, vertically or overhead.


Technical Specifications:

Twist drill: Ø depending on the respective drilling machine used

Arbor: Euro Adaptor Ø 43 mm

Stroke: 105 mm

Height adjustment: 80 mm

Magnetic holding force: 17,000 N

Tool-Force (10 mm): 2,800 N

Min. material thickness: from 2 mm

Magnetic base: 72 x 190 mm

Weight: 6.8 kg



Features:

-Operation

Soft-touch grips


-Magnet

Permanent magnet

TiN-coating


Specifications

ManufacturerAlfra GmbH
ModelDrill stand SP-V
ConditionNew
Stroke105 mm
Height adjustment80 mm
Magnetic holding force17,000 N
Tool-Force (10 mm)2,800 N
Min. material thicknessfrom 2 mm
Magnetic base72 x 190 mm
Weight6.8 kg
Twist drill:Ø depending on the respective drilling machine used
Arbor:Euro Adaptor Ø 43 mm
