Alfra GmbH V32, 230 V



orCall +353 838108745

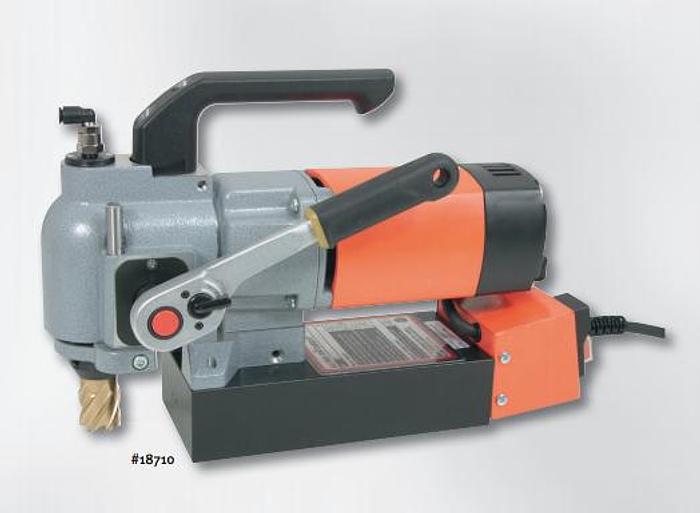

Alfra Drilling Machines V32, 230 V

This device is destined to cut material with magnetisable surface with core cutters in sheltered environment for commercial use in industry and craft. The device is suitable for drilling vertical, horizontal and overhead.

Technical Specifications:

Core drill dimensions: Ø 12.0 - 32.0 mm

Cutting depth: 30.0 mm

Counterboring: Ø 10.0 - 32.0 mm

Arbor: 19 mm Weldon shank

Stroke: 45 mm

Gearbox – on-load speed: 450 rpm

Power consumption: 900 W

Voltage: 230 V 50/60 Hz 110 V 50/60 Hz

Magnetic holding force: 16,000 N

Tool-Force (10 mm): 2,100 N

Min. material thickness: 6 mm

Magnetic base: 95 x 200 mm

Weight:12.5 kg



Compact, lying motor

Compact mitre gear

 2-sided column guide

Space-saving – through ratchet

Metal Ring Magnet


ManufacturerAlfra GmbH
ModelV32, 230 V
Cutting depth30.0 mm
Arbor19 mm Weldon shank
Stroke45 mm
Gearbox – on-load speed450 rpm
Power consumption900 W
Magnetic holding force16,000 N
Tool-Force (10 mm)2,100 N
Min. material thickness6 mm
Magnetic base95 x 200 mm
Weight12.5 kg
