€2,019 (EUR)

Alfra GmbH RB 80 SP R/L-E

5

Germany

No longer available

Description

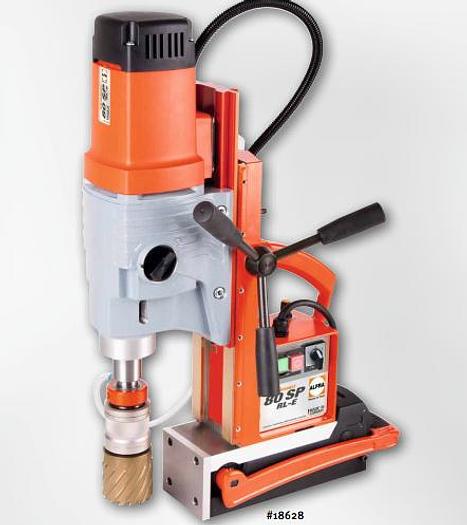

Alfra Drilling Machines RB 80 SP R/L-E


The magnetic core drilling machine can be attached to ferromagnetic work pieces using the installed mechanically switchable permanent magnet. For this purpose, the magnetic lever must be pressed downwards and the safety tab must latch into place correctly. The motor can be turned on and off using the large switch on the side. A self- adjusting linear guide which the motor is attached to, can be vertically adjusted using the rotary handle. The model- plate and an attachment possibility for the allen wrench included can be found on the back of the machine.


Technical Specifications:

Core drill dimensions: Ø 12.0 - 80.0 mm / Ø 20.0 - 50.0 mm (extra long 110 mm)

Cutting depth: 50.0 mm / 110.0 mm

Twist drill: Ø 1.0 - 16.0 mm with drill chuck up to Ø 32.0 mm with MT3 DIN 345

Counterboring: Ø 10,0 - 55,0 mm

Tapping: with taping chuck: up to M30 with tapping attachment: up to M30

Arbor: MT3

Stroke: 190 mm

Height adjustment: 60 mm

Gearbox – on-load speed: right/left 1. Step 50 - 110 rpm 2. Step 75 - 175 rpm 3. Step 105 - 245 rpm 4. Step 165 - 385 rpm

Power consumption: 1,800 W

Voltage: 230 V 50/60 Hz 110 V 50/60 Hz

Magnetic holding force: 22,000 N

Tool-Force (10 mm): 2,500 N

Min. material thickness: from 3 mm

Magnetic base: 94 x 255 mm

Weight: 22.6 kg


Features:


-Motor

Smooth Start

Right/left run

Overload protection


-Gearboxes

Oil bath gearbox

Mechanical slipping clutch



-Slide

Stepless adjustment

Self-adjusting guide



-Operation

Soft-touch grips

Cord length 5 m



-Magnet

Sensor/LED

Permanent magnet

TiN-coating


Specifications

ManufacturerAlfra GmbH
ModelRB 80 SP R/L-E
ConditionNew
ArborMT3
Stroke190 mm
Height adjustment60 mm
Power consumption1,800 W
Magnetic holding force22,000 N
Tool-Force (10 mm)2,500 N
Min. material thicknessfrom 3 mm
Magnetic base94 x 255 mm
Weight22.6 kg
