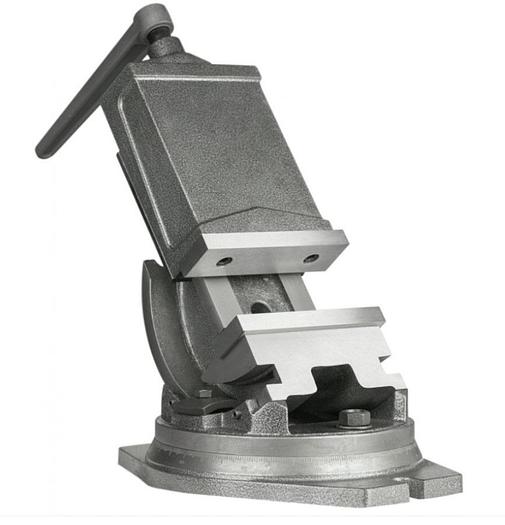

Cormak QHK125 x 125mm Tilting Machine Vice

Cormak QHK125 x 125mm Tilting Machine Vice

Vice Description

The vice is made of high quality cast iron. Thanks to the precise guiding, the rotary-vice machine vice is used in the precision mechanics industry. The rotating base allows you to change the angle in the horizontal plane by 360 degrees & in the vertical plane by 90 degrees. Jaw inserts made of hardened tool steel (55 + - 3HRC) and precision ground.

• Vice made of high quality cast iron. • Rigid structure, high durability and reliable. • Angle of rotation around Y axis – 360 Deg, Z axis – 90 Deg. • Vice Applications: grinding, milling and drilling machines. Technical Specifications Jaw Width : 125 mm Max Opening : 125 mm Jaw Height: 50 mm Base Width: 244 mm Height: 195 mm Length: 420 mm Clamping force: 3000 kg Weight: 33 kg

Vice Dimensions

S: 125mm

am: 125mm

h: 50mm

H: 195mm

A: 244mm

L: 420mm

D: 18mm
