€1,415 + VAT

Cormak WS20 Bench Mounted Drill - Capacity 20mm - 3 Phase

1

Poland

orCall +353 838108745

Description

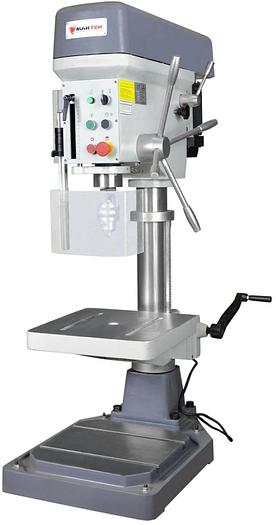

Cormak WS20 Bench Mounted Drill - Capacity 20mm - 3 Phase


The WS20 bench drill is a general-purpose drilling machine for performing operations such as drilling, reaming, countersinking, threading (using special holders for threading tools). Drill allow drilling and tapping with multi-spindle holders. The drilling machine is characterised by high efficiency, accuracy of operations, low noise level, wide range of rotational speeds, a centralised control panel for ease of use. MACHINE CHARACTERISTICS High spindle rigidity Forward & reverse rotation The spindle head, column, table and column base made of the highest quality of seasoned castings Spindle and transmission shafts of hardened and heat treated steel High motor power A large spindle stroke Readable control panel Spindle cover u-type with limit switch according to CE Working table manually lifted with 360 rotation and assembly grooves Belt transmission cover equipped with an extreme safety switch CE certificate Adjustable drill chuck with key and mt sleeve Spindle drift key TECHNICAL SPECIFICATIONS Max. Diameter of drilling in steel: 20 mm Max. The diameter of threading in steel: m16 Diameter columns: 85 mm Spindle lever: 135 mm Distance to column: 260 mm Max. Distance to table: 366 mm Max. Distance to base: 678 mm Mounting spindle: MT2 Spindle speeds: 280-1875 rpm Number of speeds: 5 Table dimensions: 300 x 320 mm Dimensions of the base: 376 x 566 mm Height of machine: 1245 mm Motor power: 1.1 kw Power: 400v Net weight: 179 kg Dimensions: 800 x 450 x 1250 mm OPTIONAL: Coolant equipment

Specifications

ManufacturerCormak
ModelWS20 Bench Mounted Drill - Capacity 20mm - 3 Phase
ConditionNew
Diameter columns85 mm
Spindle lever135 mm
Distance to column260 mm
Max. Distance to table366 mm
Max. Distance to base678 mm
Mounting spindleMT2
Spindle speeds280-1875 rpm
Number of speeds5
Table dimensions300 x 320 mm
Dimensions of the base376 x 566 mm
Height of machine1245 mm
Motor power1.1 kw
Power400v
Net weight179 kg
OPTIONALCoolant equipment
