€4,015 + VAT

Cormak Z5023 Vario Pedestal Drilling Machine

1

Poland

orCall +353 838108745

Description

Cormak Z5032 Vario Pedestal Drilling Machine


Machine Type: Gear Driven Pedestal Drilling Machine

Capacity: 32mm

Power: 3 Phase 400V


Machine Description

Very efficient column drilling machine ensuring optimal drilling results. It is equipped with a large worktable, smooth spindle speed adjustment, left/right rotations and an adjustable drilling depth limiter with a scale. This Vario model, equipped with smooth spindle speed adjustment.


Machine Features

Work area lighting

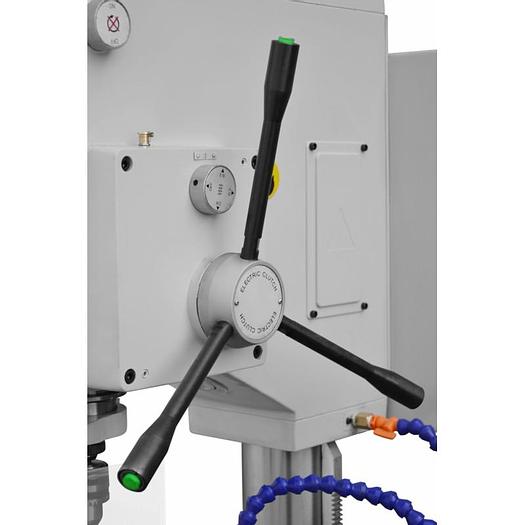

Spindle autofeed

Tapping capability

Base with T-slots

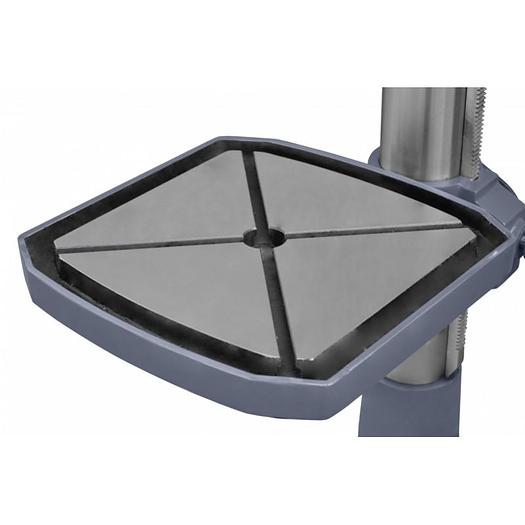

Table tilt and height adjustment

Right/left rotations

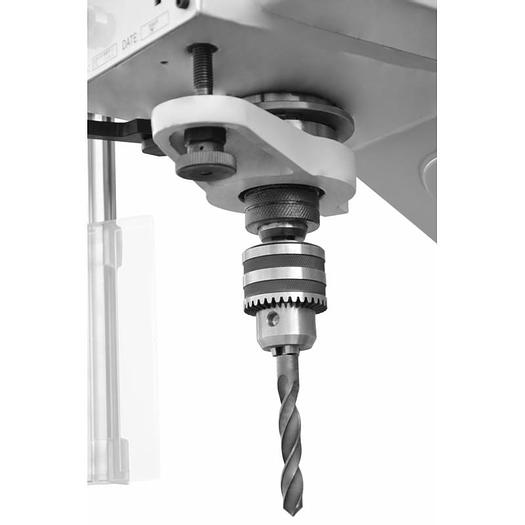

Drilling depth indicator

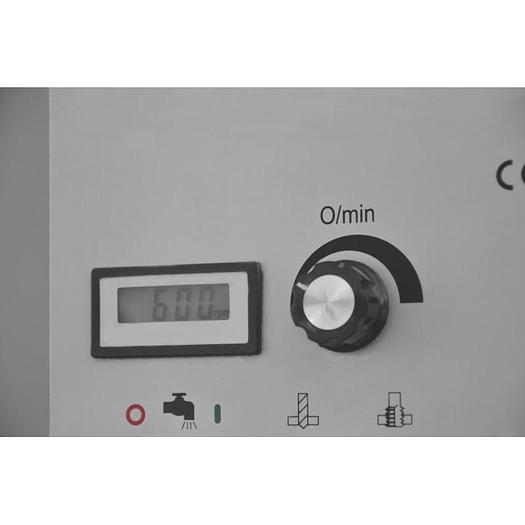

Spindle speed electronic indicator


Technical Details

Maximum Drilling Diameter: 32 mm

Maximum Steel / Cast Iron Tapping Diameter: 16 / 22 mm

Spindle Taper: MT4

Spindle Quill Travel: 170 mm

Throat Depth: 295 mm

Distance from Spindle Face to Worktable: 690 mm

Distance from Spindle Face to Base: 1200 mm

Spindle Speed (2 ranges): 90–980 rpm & 1000–3200 rpm

Feed Ranges: 0.06 / 0.12 / 0.18 mm/turn

Worktable Dimensions: 460×460 mm

Base Dimensions: 620×450 mm

T-slots Width: 14 mm

Motor Power: 1.5 kW

Dimensions: 900×500×2200 mm

Weight: 310 kg

Specifications

ManufacturerCormak
ModelZ5023 Vario Pedestal Drilling Machine
ConditionNew
Capacity32mm
Power3 Phase 400V
Maximum Drilling Diameter32 mm
Spindle TaperMT4
Spindle Quill Travel170 mm
Throat Depth295 mm
Worktable Dimensions460×460 mm
Base Dimensions620×450 mm
T-slots Width14 mm
Motor Power1.5 kW
Dimensions900×500×2200 mm
Weight310 kg
