Cormak Z5020 400V Vario Pedestal Drill
Description

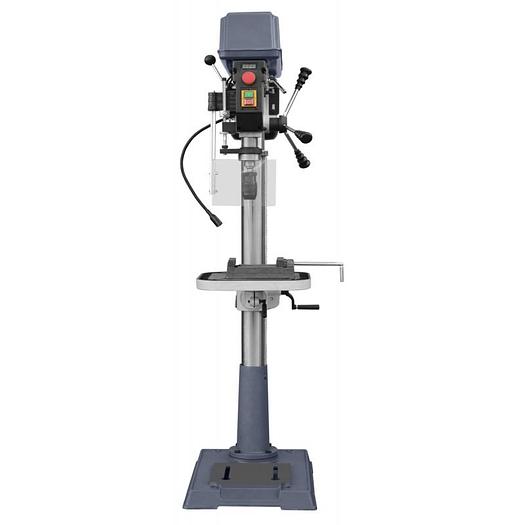

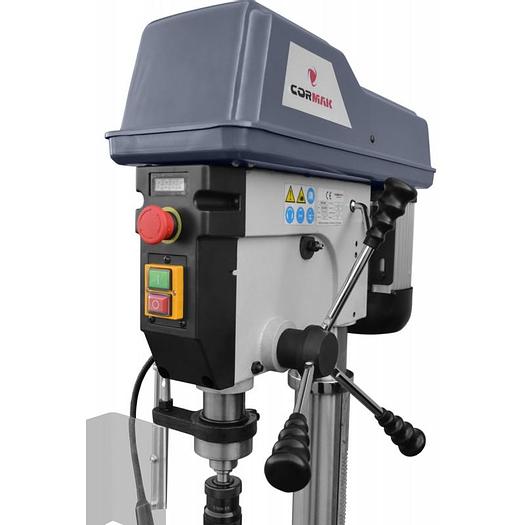

Cormak Z5020 400V Vario Pedestal Drilling Machine
Machine Type: Belt Driven Pedestal Drilling Machine
Drilling Capacity: 25mm
Power: 3 Phase 400V
Machine Description

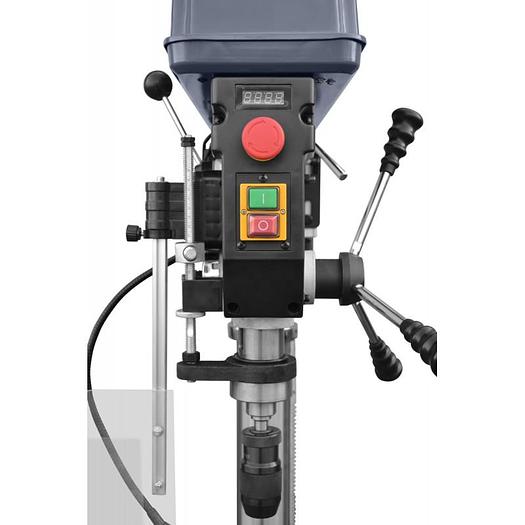

This machine, due to its rigid construction, provides accurate drilling. Tilting table furthers its drilling capabilities. Equipped with an electronic RPM indicator and drilling depth indicator. 125 mm vice in the set. This model is also equipped with smooth spindle speed adjustment.
Machine Features
Smooth spindle speed adjustment
LED lamp
Worktable and base equipped with T-slots
Solid, torsion resistant column
-45°/+45° tilting worktable

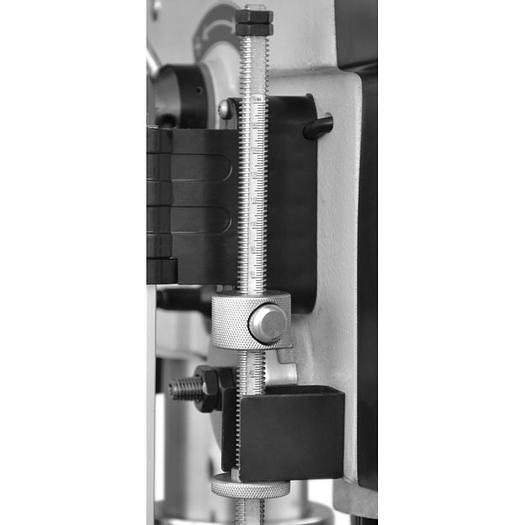

Drilling depth limiter with a scale
Technical Details
Maximum Drill Bit Diameter: 25 mm

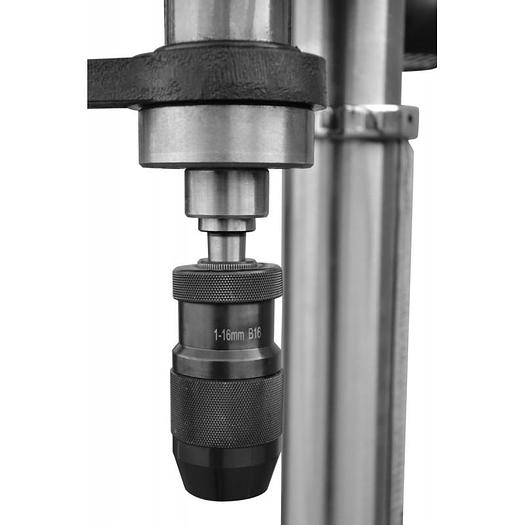

Maximum Chuck Diameter: 16 mm
Throat Depth: 215 mm
Spindle Taper: MT3
Spindle Quill Travel: 150 mm
Column Diameter: 80 mm
Motor: 400V / 50Hz / 1500 W
Gearbox: Yes
Base Dimensions: 580 x 415mm
Table Dimensions: 356 x 356mm
Total Height: 1710 mm
Spindle speed (50 Hz): 180–2000 rpm
Table movement range: 600 mm
Boxed dimensions (length/width/height): 1510 x 690 x 256mm
Weight: 95 kg
Specifications
Manufacturer | Cormak |
Model | Z5020 400V Vario Pedestal Drill |
Condition | New |
Drilling Capacity | 25mm |
Power | 3 Phase 400V |
Maximum Drill Bit Diameter | 25 mm |
Maximum Chuck Diameter | 16 mm |
Throat Depth | 215 mm |
Spindle Taper | MT3 |
Spindle Quill Travel | 150 mm |
Column Diameter | 80 mm |
Gearbox | Yes |
Base Dimensions | 580 x 415mm |
Table Dimensions | 356 x 356mm |
Total Height | 1710 mm |
Spindle speed (50 Hz) | 180–2000 rpm |
Table movement range | 600 mm |
Weight | 95 kg |
