€1,622.50 + Vat

Cormak ERBM 10HV Section Rolls

5

Poland

orCall +353 838108745

Description

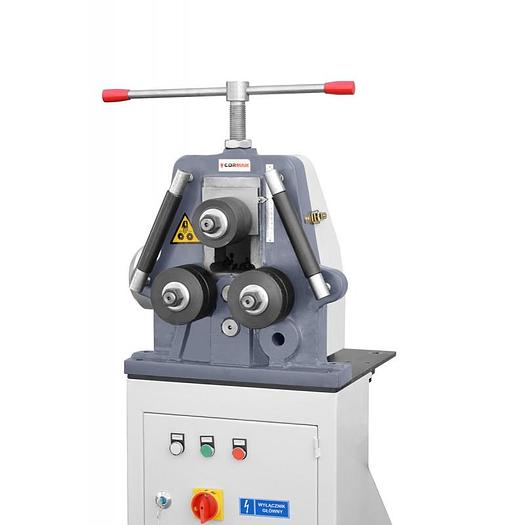

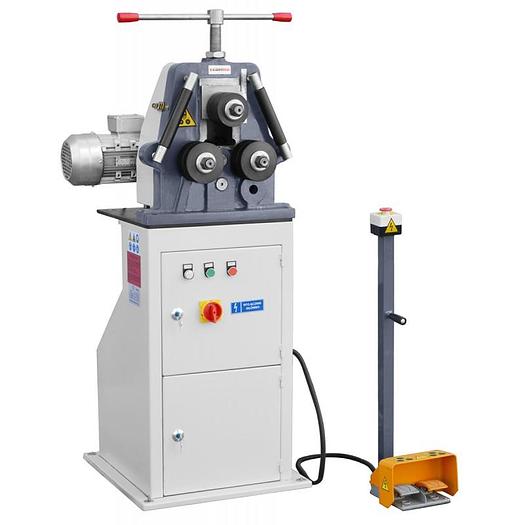

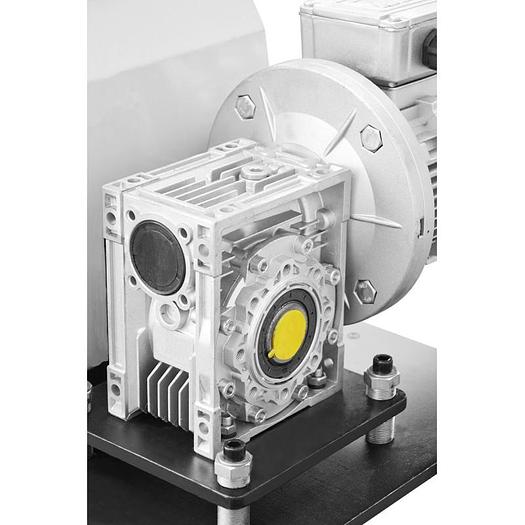

Cormak ERBM 10HV Section Rolls


Machine Description

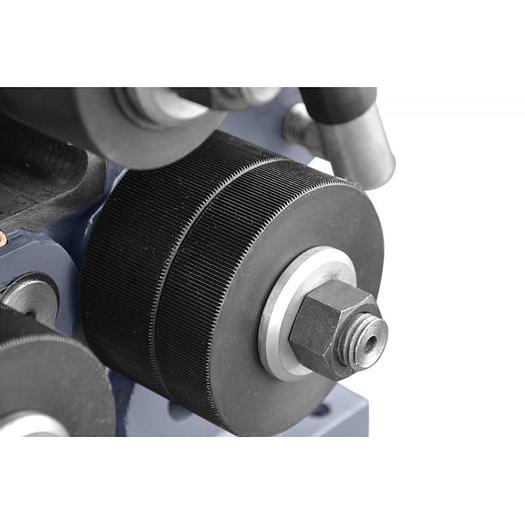

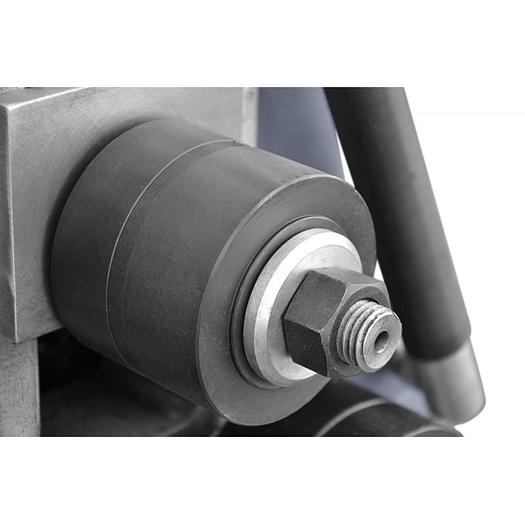

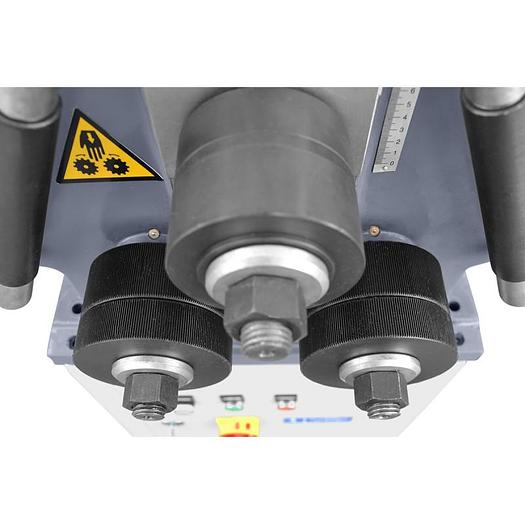

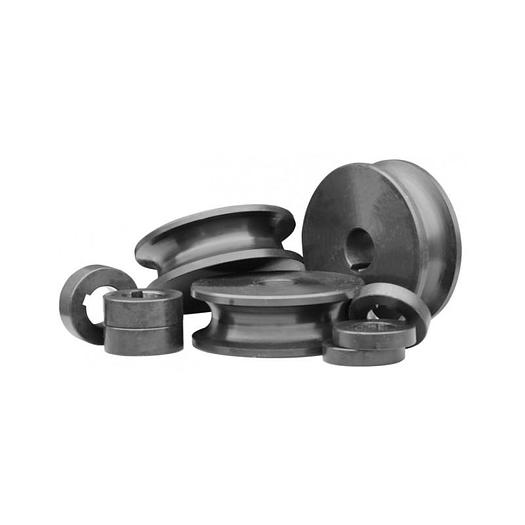

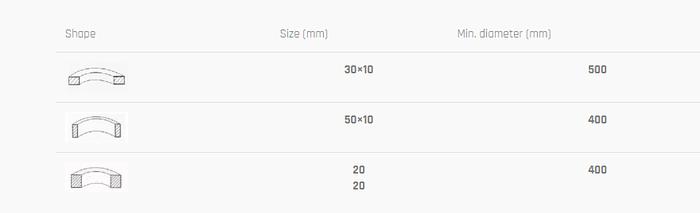

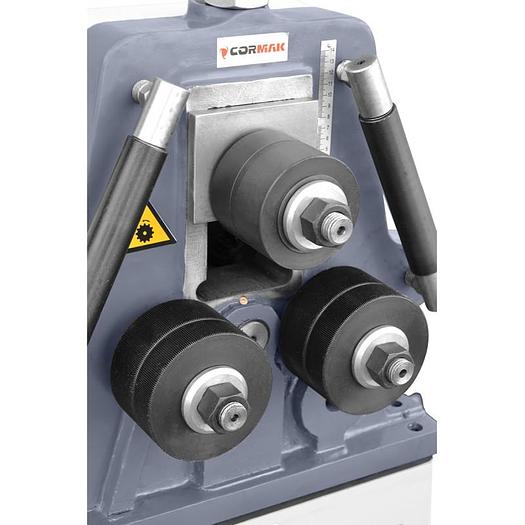

Electric bending machine for bending pipes and profiles, rods and flat bars depending on the rollers used. The machine is additionally equipped with a mechanical upper roller with a scale. The perfect solution when bending arcs, circles, spirals, etc. The set includes a foot pedal for controlling the left / right drive. Maximum range of tube bending up to 30 mm. The machine can used vertically and horizontally. Machine Features Hardened bending shafts made of special steel Great value for money Upper, mechanically adjustable pressure Ground and hardened guide rollers on the sides Position read out by the scale in millimetres The possibility of working vertically and horizontally Technical Specification Shaft diameter: 30 mm Motor power: 1.1 kw Working speed:8 rpm Dimensions: 950 x 800 x 1350 mm Weight: 230 kg Capacity Section on Flat: Max: 30 x 10mm Min Dia: 500mm Section on Edge: Max: 50 x 10mm Min Dia: 400mm Square Section: Max: 20 x 20mm Min Dia: 400mm

Specifications

ManufacturerCormak
ModelERBM 10HV Section Rolls
ConditionNew
