€90,000 + Vat

2019 Tornos Swiss DT26 Sliding Head CNC Lathe

1

Cork, Ireland

orCall +353 838108745

Description

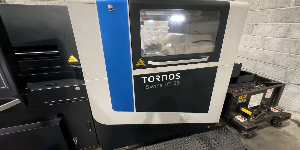

Tornos Swiss DT26 Sliding Head CNC Lathe


Machine Type: Sliding Head CNC Lathe

Year: 2019 (installed new in 2023)

Control: Fanuc Series 31i-Model B

Cutting Hours: 1443hrs

Condition: Excellent - was an ex Demo machine previously


Includes

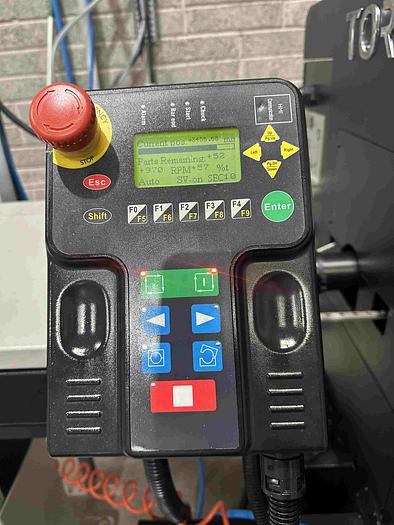

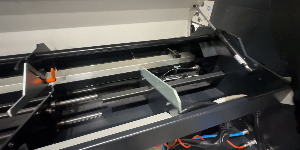

Tornos Robobar SBF 326 (3.2m)Bar Feeder

Selection of Tool Holders


Machine Specifications

Number of Axes: 5

Axes: X1, Y1, Z1,X4,Z4

Max Machining Capacity: 25.4mm

Min Machining Capacity: 4mm

Part Length: 110mm (when using part ejector)

Main Spindle Max Speed: 10,000rpm

Sub Spindle Max Speed: 10,000rpm

Basic Collet Type: F30

C Axis: On both spindles

Tool Stations Front: 14

Tool Stations Back: 4

Max Tool Stations Front: 20

Max Tools Stations Back: 4

Motorised Guidebush Speed: 10,000rpm

X1 Travel: 88mm

Y1 Travel: 325mm

Z1 Travel: 340mm

X4 Travel: 320mm

Z4 Travel: 265mm

Electrical Connection: 16kW

Air Pressure: 6 Bar

Oil Tank Capacity: 210L

Machine Dimensions: 2610x1370x1720mm

Machine + Barfeed Dimensions: 6220x1370x1720mm

Machine Weight: 2400kg


Show All

Specifications

ManufacturerTornos
ModelSwiss DT26 Sliding Head CNC Lathe
Year2019
ConditionUsed
Serial Number25800010233
Machine TypeSliding Head CNC Lathe
ControlFanuc Series 31i-Model B
ConditionExcellent
Cutting Hours1443hrs
Number of Axes5
AxesX1, Y1, Z1,X4,Z4
Max Machining Capacity25.4mm
Min Machining Capacity4mm
Main Spindle Max Speed10,000rpm
Sub Spindle Max Speed10,000rpm
Basic Collet TypeF30
C AxisOn both spindles
Tool Stations Front14
Tool Stations Back4
Max Tool Stations Front20
Max Tools Stations Back4
Motorised Guidebush Speed10,000rpm
X1 Travel88mm
Y1 Travel325mm
Z1 Travel340mm
X4 Travel320mm
Z4 Travel265mm
Electrical Connection16kW
Air Pressure6 Bar
Oil Tank Capacity210L
Machine Dimensions2610x1370x1720mm
Machine + Barfeed Dimensions6220x1370x1720mm
Machine Weight2400kg
