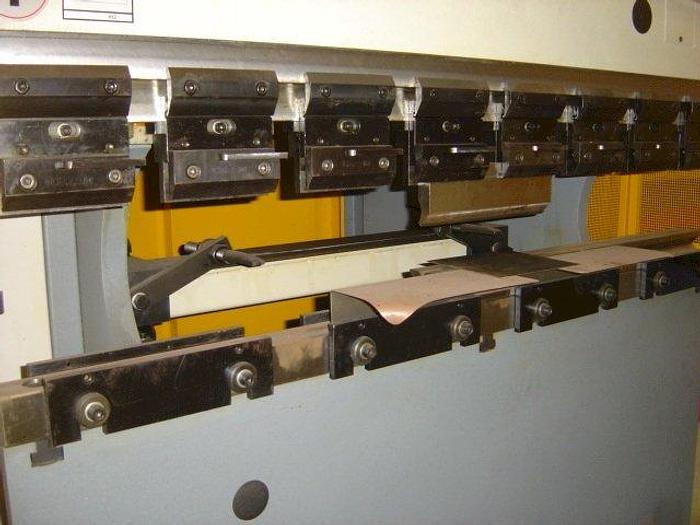

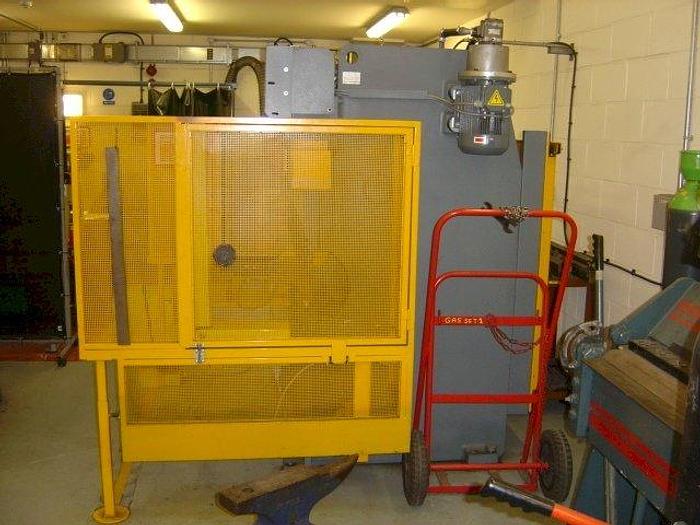

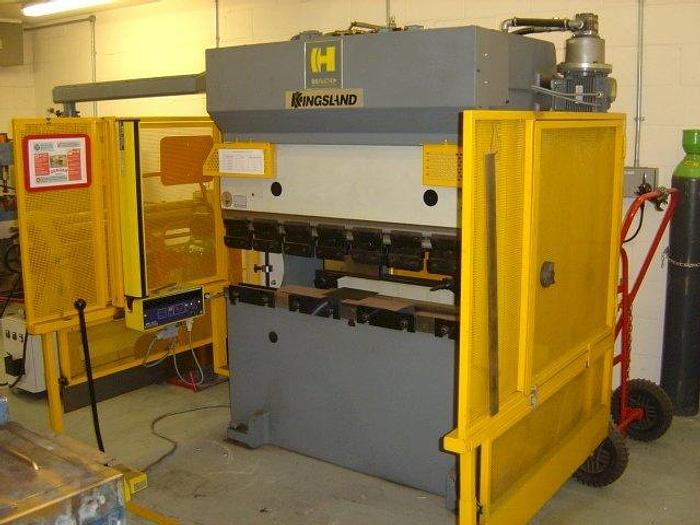

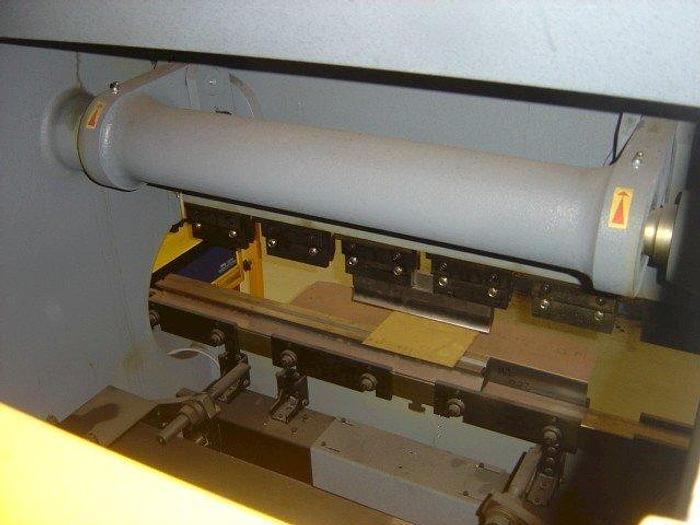

2008 Haco/Kingsland PPM 1640 Pressbrake
Sold
Description

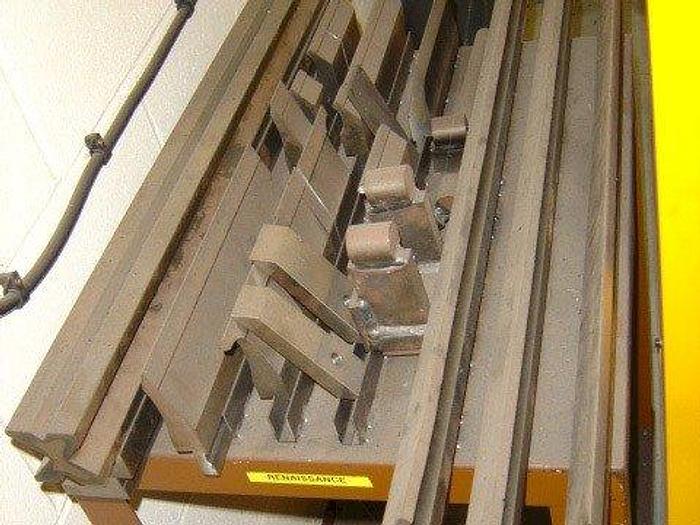

2008 Haco/Kingsland PPM 1640 Pressbrake Year: 2008 Location: Germany Control: Robosoft ATL550 Control Bending Length: 1600mm Capacity: 40 Ton Distance Between Columns: 1100mm Throat Depth: 195mm Daylight Opening: 295mm Stroke:100mm Table Height: 840mm Approach Speed: 70mm/sec Bending Speed: 8mm/sec Return Speed: 55mm/sec Backgauge Stroke: 650mm Back Gauge Fingers: 2 Motor Power: 4.1kW Includes: Light Guards Foot Pedal Selection of Tooling Machine Dimensions (L x W x H): 2100 x 1450 x 2100mm Machine Weight: 2500kg
Specifications
Manufacturer | Haco |
Model | PPM1640 |
Year | 2008 |
Condition | Used |
Stock Number | 00161 |

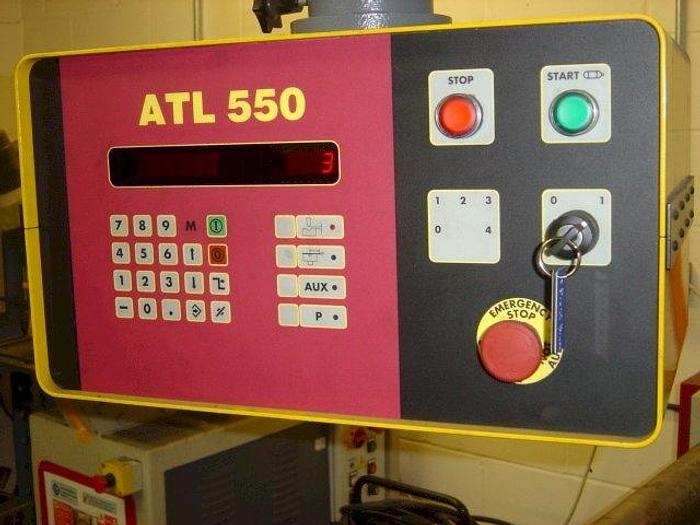

Control | Robosoft ATL550 Control |
Bending length | 1600mm |
Distance Between Columns | 1100mm |
Capacity | 40 Ton |
Throat Depth | 195mm |
Stroke | 100mm |
Table Height | 840mm |
Daylight Opening | 295mm |
Approach Speed | 70mm/sec |
Bending Speed | 8mm/sec |
Return Speed | 55mm/sec |
Backgauge Stroke | 650mm |
Back Gauge Fingers | 2 |
Motor Power | 4.1kW |
Machine Dimensions (L x W x H) | 2250 x 2250 x 2250mm |
Machine Weight | 2500kg |
Year | 2008 |
