Cormak BS 712 SW Manual Bandsaw
Description
Cormak BS712SW Single Phase Manual Bandsaw
Machine Type: 230V/Single Phase Manual Bandsaw
Machine Description

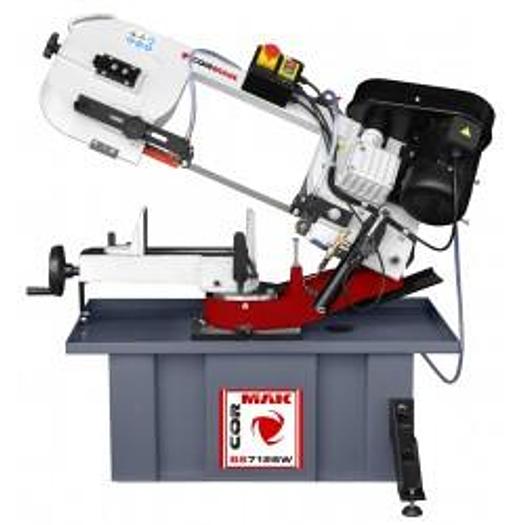

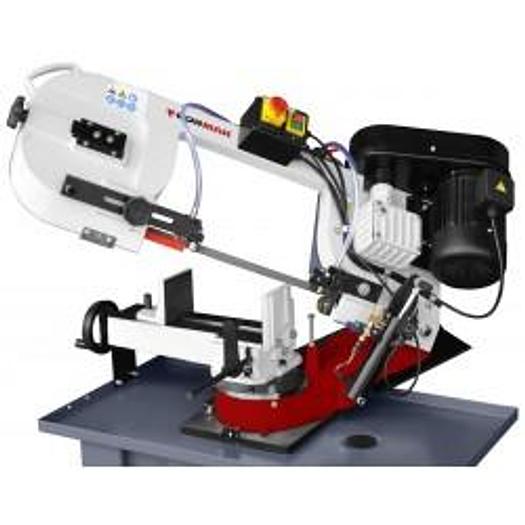

Professional, very powerful and efficient metal band saw with 45° swivel arm, CORMAK BS 712 SW is based on refined solutions making it unrivaled in its class.

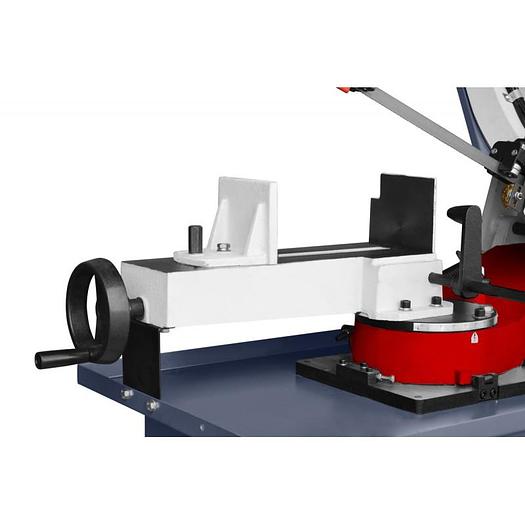

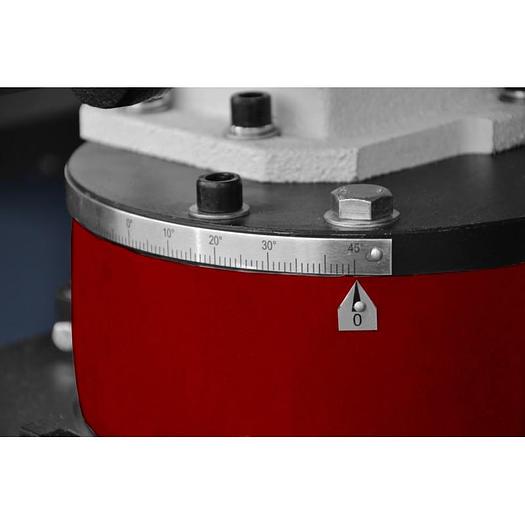

Arm made of shaped spheroidal cast iron ensures rigidity during operation and absorbs all vibrations. Control panel is located on the arm of the cutter. It features high efficiency and simple handling. Straight Cutting or Mitre Cutting at any angle in 45° – 90° range. Material can be fed manually or by any feeding device. The feed during cutting is gravitational using a two-chamber hydraulic cylinder. Suitable speed of arm lowering is obtained thanks to the valve controlling oil flow between hydraulic cylinder chambers.

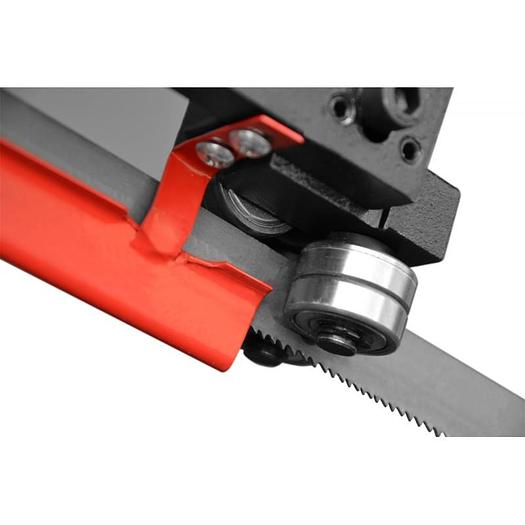

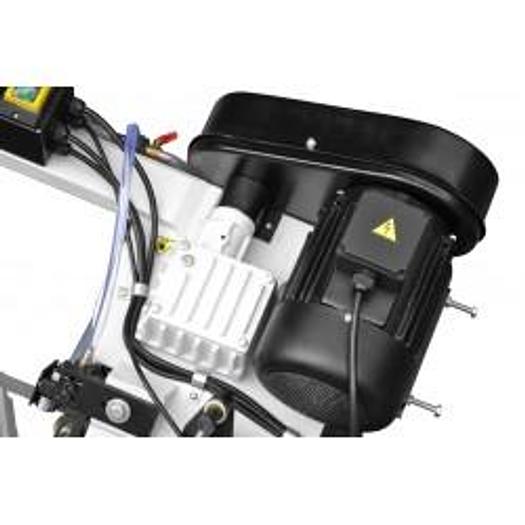

Rugged, stable and refined construction as well as the arm made of uniform cast iron provide high rigidity and stability while cutting, ensuring accuracy and long-term reliability. The design of the 20 mm saw blade used in the machine makes it possible to cut large quantities of elements. Blade Speed is adjusted by adjusting the belt on the motor pulley.
Technical Details
Blade dimensions: 2360 × 0.9 × 20 mm
Motor:(S1 100%) 1.1 kW
Power supply: 230V 50Hz
Band speed: 22/33/45/65 m/min
Weight: 145kg
Packaging dimensions: 1280 × 575 × 1140 mm
Cutting Capacity
Capacity 0º (Round): 205mm
Capacity 0º (Rectangular): 215 x 205mm
Capacity 0º (Square): 205 x 205mm
Capacity 45º L (Round): 150mm
Capacity 45º L (Rectangular): 200 x 100mm
Capacity 45º L(Square): 130 x 130mm
Capacity 45º R (Round): 140mm
Capacity 45º R (Rectangular): 140 x 90mm
Capacity 45º R (Square): 90 x 90mm
Specifications
Manufacturer | Cormak |
Model | BS 712 SW Manual Bandsaw |
Condition | New |
Machine Type | 230V/Single Phase Manual Bandsaw |
Motor | (S1 100%) 1.1 kW |
Power supply | 230V 50Hz |
Band speed | 22/33/45/65 m/min |
Weight | 145kg |
Capacity 0º (Round) | 205mm |
Capacity 0º (Rectangular) | 215 x 205mm |
Capacity 0º (Square) | 205 x 205mm |
Capacity 45º L (Round) | 150mm |
Capacity 45º L (Rectangular) | 200 x 100mm |
Capacity 45º L(Square) | 130 x 130mm |
Capacity 45º R (Round) | 140mm |
Capacity 45º R (Rectangular) | 140 x 90mm |
Capacity 45º R (Square) | 90 x 90mm |
